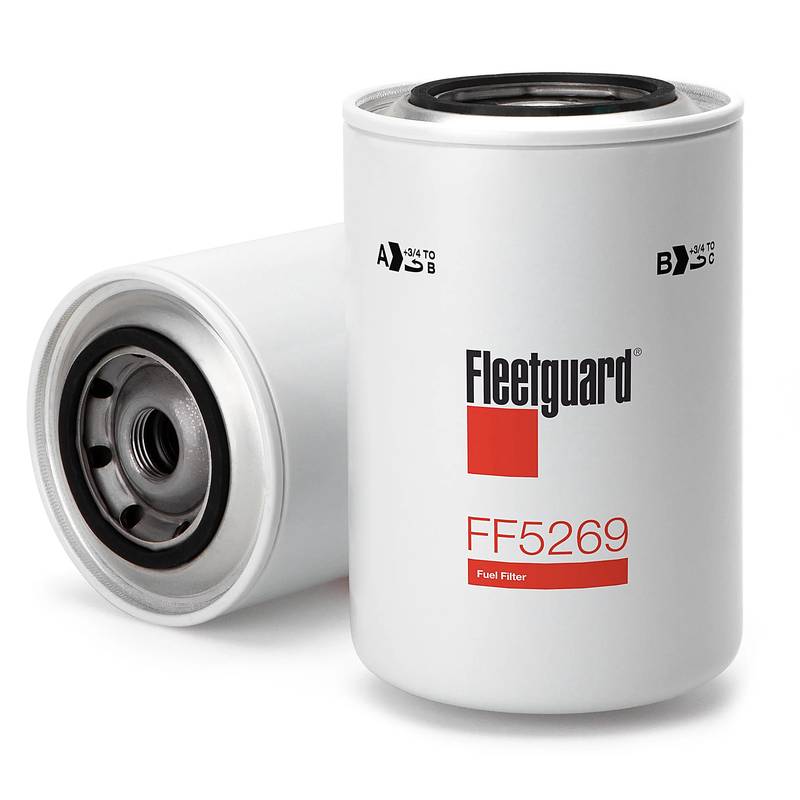

FF5269 FLEETGUARD FUEL FILTER KW

Low stock
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Fuel Filter, Spin-On
Part Number Fleetguard FF5269
Thread Size 7/8-14 UNF-2B
Length 6.64 inch (168.55 mm)
Largest OD 4.24 inch (107.67 mm)
Gasket OD 2.82 inch (71.63 mm)
Gasket ID 2.46 inch (62.59 mm)
Rated Flow 0.58 gpm (2.20 L/min)
Efficiency Test Std 8.60 micron (c) @ 98.7% (SAE J905 / J1985)
Media Type Cellulose / Advanced Media
Standpipe No
Related Parts Shorter version of Fleetguard FF5078

Cross References

Brand Part Number
International / Navistar / IHC 1822588C1
Detroit Diesel 23523907, 23531904
Baldwin BF7629
Donaldson P551318
Wix 33403
NAPA Gold 3403
Luber-finer LFF3349
Fram / Carquest P8191 / 86403
Caterpillar / FG Wilson 100051229 / 1000071716
Mack 5839FF5078, 3076P8191, 5839FF5269
Terex / Atlas Copco 15271473 / 5541665100
Tec-Fil PSC603

Maintenance Kits

Kit Number Contents Included
MK12817 LF3883 (Lube), FF5269 (Fuel), FF203 (Fuel)
MK13063 HF35296 (Hydraulic), FF5269 (Fuel), LF3883 (Lube)

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
INTERNATIONAL / NAVISTAR DuraStar / 4000 Series (4300, 4300LP, 4400, 4400LP, 4700, 4800, 4900) DT466, DT466E, MaxxForce DT, DT530, HT570, DT570 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2013, 2014, 2015, 2016, 2017
3000 Series / 3200 / 3300 (Bus Chassis) DT466, DT466E, MaxxForce DT, MaxxForce 7 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
WorkStar / 7000 Series (7400, 7500, 7600) DT466, DT530, HT570, DT570 2005, 2006, 2007, 2008
PayStar / 5000 Series (5500i, 5600i, 5900i) DT530 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
Older Models (1954, 2250, 2554, 2654, 7100, S-Series) DT466, DT466C, DTA466C, DT468, DT530, DTA360, DT408 1984, 1985, 1987, 1989, 1991, 1999, 2000
IC BUS RE (Rear Engine), CE (Conventional), FE (Front Engine) - School & Commercial DT466, MaxxForce DT, DT360 2006, 2008, 2009, 2010, 2015, 2018, 2019
THOMAS BUILT Vista DT408, DT360 -
CAPACITY TJ5000 Terminal Tractor QSB 6.7 2013
OFF-HIGHWAY Terex: S-17E Olympian: GEH220-4 Gomselmash / MTZ: KZS-1218, UES 2-250, MTZ 3022 DV Detroit Diesel Series 40 (S40E) / Perkins 1306 -
