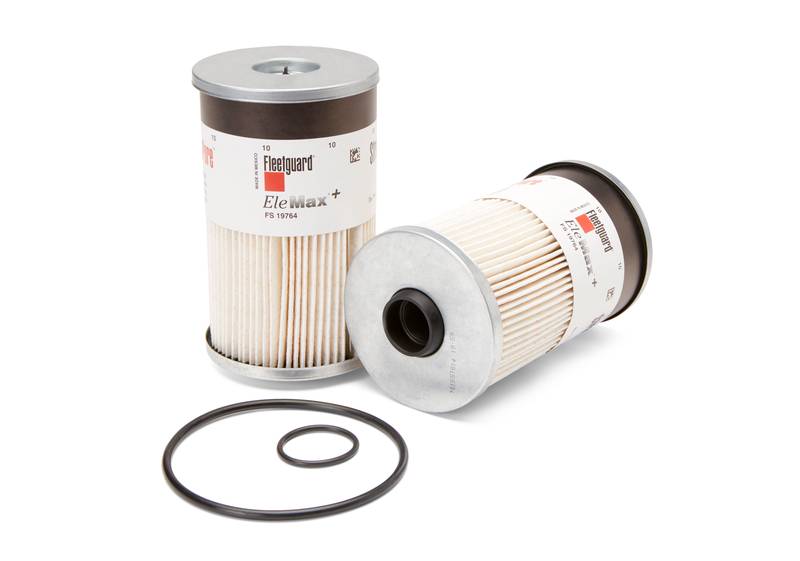

FS19764 FUEL / WATER FILTER SEPARATOR

Low stock
$39.87
$39.87
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Feature Details / Value
Product Type EleMax™ Plus Size Fuel/Water Separator Cartridge Filter
Filtration Media StrataPore™ Coalescing Media
Micron Rating 10 Micron (by SAE J1985 standards)
Overall Height 7.039 inches (178.79 mm)
Largest Outside Diameter (O.D.) 4.21 inches (106.93 mm)
End 1 Inside Diameter (I.D.) 0.66 inches (16.76 mm)
Water Separation Efficiency Free Water: 95% | Emulsified Water: 95%
Particulate Efficiency (TWA) 98.7% (by SAE J1985)
Housing Compatibility Davco Fuel Pro® 230 Series, Industrial Pro® 234 Series
Biodiesel Compatible Yes

Cross References

Brand / Manufacturer Part Number
Baldwin PF9814, PF7928
Carquest 86964
Caterpillar 3700572
Davco 102527, 382140, 382146
Donaldson P179960, P550849, P550850
Fleetguard (Main Product) FS19764
Fram CS11023
Luber-Finer L9763FXL
Mack 5839FS19764
NAPA Gold 3964, 3763
Wix 33964, 33763

Applications & Compatibility

Category Usage & Application Guidelines
Vehicle Suitability • Heavy-Duty Class 8 Semi-Trucks, Vocational Trucks, Commercial Fleets, and Off-Highway Industrial Equipment using Davco-equipped fuel filtration processors.
Engine Matching • **Cummins:** ISX, ISM, ISL, X12, X15 heavy-duty diesel series. • **Volvo:** D11, D13, D16 heavy-duty engine setups. • **Mack:** MP7, MP8 engine configurations. • **Detroit Diesel:** Series 60, DD13, DD15 platforms utilizing Davco Fuel Pro retrofit assemblies. • **Caterpillar:** C11, C13, C15 industrial and on-highway engine groups.
Purpose & Function • Serves as an extended-service interval, plus-size version upgrade over standard filter models to prolong service line cycles. • Employs a patented internal control valve and multi-layered StrataPore media to completely trap suspended fuel micro-contaminants and separate corrosive free water, preventing fuel injector fouling and maximizing fuel system hardware lifespan.
