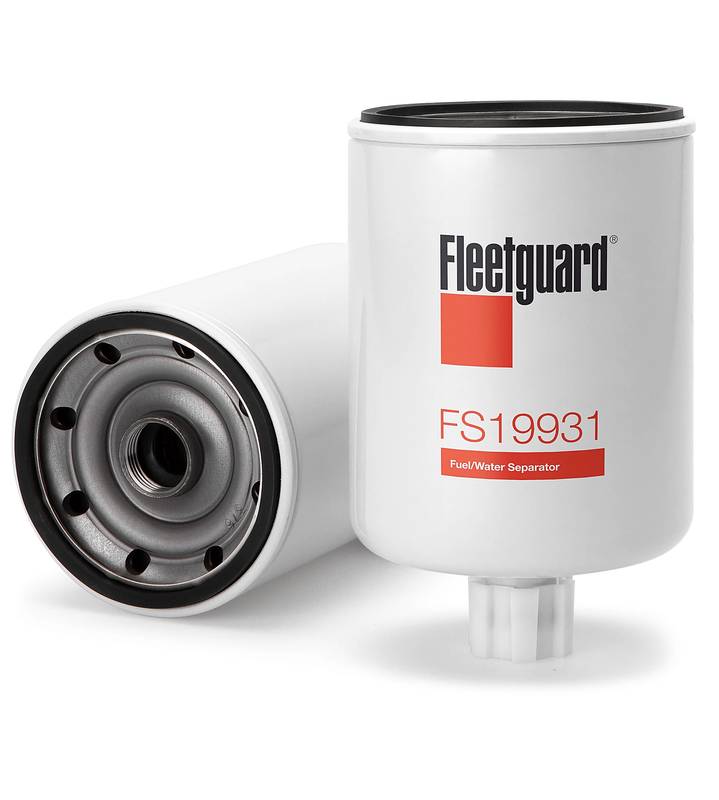

FS19931 FLEETGUARD FUEL FILTER KW

Low stock
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Primary Fuel/Water Separator, Spin-On
Part Number Fleetguard FS19931
Thread Size 1-14 UNF-2B (Housing Compatibility)
Length 6.74 inch (171.17 mm)
Largest OD 4.27 inch (108.36 mm)
Gasket OD 3.94 inch (99.95 mm)
Efficiency 10.10 micron (c) @ 98.7% (SAE J1985)
Water Separation 95% Emulsified Water
Media Type StrataPore™ Multi-Layered Media
Standpipe No
Notes Drain only version with no sensor port. Engineered for Paccar engine platforms and compatible with reusable clear collection bowls. Drain only option for FS19547.

Cross References

Brand Part Number
Paccar K051122, K051123
Donaldson P551101
Baldwin BF46029-O
Wix / NAPA Gold WF10034 / 600034
Luber-finer / Fram LFF6931 / PS11303
International / Navistar 1677004C91, 1618386C92, 1697197C1, 1618386C91, 1618385C91
Case IH / New Holland 87802929, 6933130, 87803210
Hino 234011440L, S234011440
Mack / Carrier Transicold 5839FF5301 / 300109004, 21300109004

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
BLUE BIRD Vision School Bus, All American (FE, RE), Conventional Bus RE, XCEL 102 (Transit) Cummins ISB 6.7, ISC 8.3, Cat C7 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
INTERNATIONAL 3000 Series (3300CE, 3000RE), 4000 Series (4700 SCD), WorkStar 7500, Genesis RE Navistar DT466, DT466E, T444E, HT530, VT365 1996, 2000, 2008, 2009
HINO 338, 338CT, 500 Series (FG1J, GH1J, FC3J, GT1J, FD1J, GD1J, FM1J), FE1J, FF1J, FB4J, FM1JNLA J08E-TW, J08C-TP, J07C, J08CT, J05C-TI 2008, 2009, 2010, 2011, 2012, 2013, 2014
PACCAR (KW / PETE) Peterbilt: 378, 357, 387, 379, 270 Kenworth: T660, T680, T880, W900 Cummins 6BT5.9, Paccar PX-7, PX-9 -
IC BUS / INTEGRATED COACH RE School Bus, RE Series (PB305), CE Commercial, FE Series, AC Commercial, BE School Bus, AR School Bus DT466, MaxxForce DT, T444E 2008, 2009, 2015, 2016, 2018, 2019
OFF-HIGHWAY Refrigeration: Carrier Transicold (Vector 1800, 6500, X2 Series) Industrial: Ottawa 4x2, Case IH, New Holland Cummins ISC 8.3, ISB 6.7, V2203DI, 2.2L Hybrid 2008, 2010
