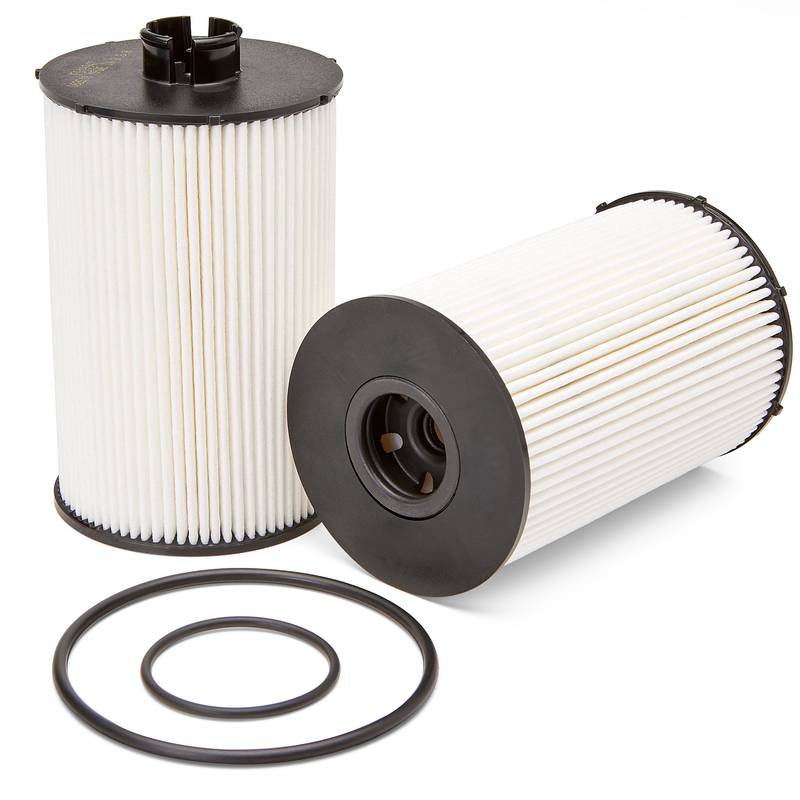

FS19947 FLEETGUARD FUEL FILTER

Low stock
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Primary Fuel/Water Separator, Cartridge Element
Part Number Fleetguard FS19947
Length 5.54 inch (140.72 mm)
Largest OD 3.28 inch (83.31 mm)
Largest End ID 1.14 inch (28.96 mm)
Gasket ID 0.48 inch (12.06 mm)
Emulsified Water Separation 98%
Media Type NanoNet® Proprietary Media
Standpipe No
Notes Uses Service Part FF275. Specifically designed for Navistar MaxxForce and N-Series engines.

Cross References

Brand Part Number
International / Navistar / IHC 1878042C91, 1878042C92, 1878042C93, 1873917C91, 1873917C92, 32723C91, 32723C92, 32723C93, 1874438C1
Donaldson P550824
Baldwin PF7978
Wix / NAPA Gold WF10149, 33994 / 600149, 3994
Luber-finer / Fram L5086F / CS10648
Mack / Racor 3076CS10648 / PFF5548
FG Wilson 1000077059

Maintenance Kits

Kit Number Contents Included
MK13911 FS19947 (Fuel), LF17499 (Lube)
MK13917 FS19947 (Fuel), LF17499 (Lube), CS41043 (Lube)
MK14719 FS19947 (Fuel), LF9025 (Lube), AD27750 (Air), HF6110 (Hyd), AF25707 (Air), AF26430 (Air), AF25732 (Air)

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
INTERNATIONAL DuraStar (4100, 4300, 4400, LP, Hybrid), WorkStar (7300, 7400, 7500), TerraStar, ProStar, LoneStar, TranStar, RH Series, 4000 Series, 7000 Series, 8500, RXT, HC Navistar N9, N10, MaxxForce 7, MaxxForce 9, MaxxForce 10, MaxxForce DT, DT466, DT466E, T444E 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Integrated Coach (CE, RE, FE, BE, AE, AR, LC, AC) Series MaxxForce DT, MaxxForce 7, Navistar DT466, T444E 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2018, 2019
WORKHORSE W20D, W22D, W62 MaxxForce 7 2008, 2009, 2010
OTHER EQUIPMENT Vocational and Off-Highway Trucks Navistar MaxxForce 13/15, N13, A26 -
