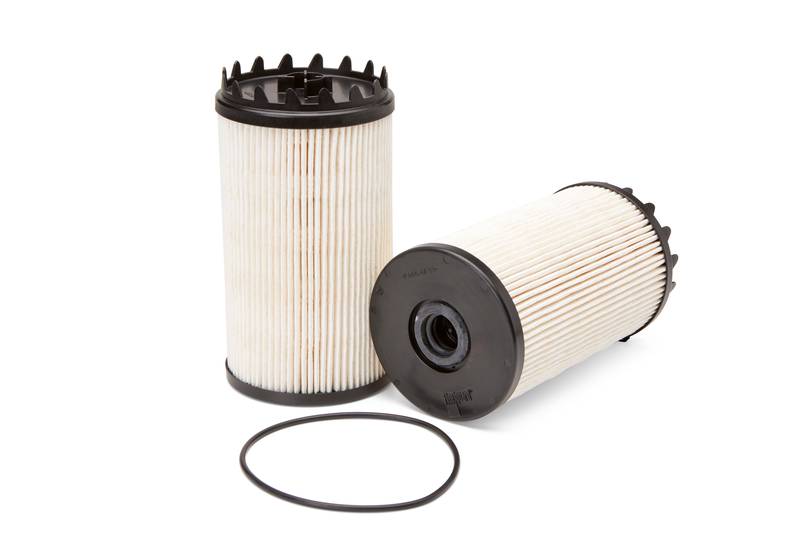

FS36401 FUEL / WATER SEPARATOR FILTER

Low stock
$69.71
$69.71
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Feature Details / Value
Product Type Premium Fuel/Water Separator Cartridge Element Filter
Media Type StrataPore™ Multi-Layer Coalescing Media
Primary Particle Efficiency 97.6% particulate capture
Emulsified Water Separation 50.28% efficiency rating
Overall Height / Length 7.622 inches (193.59 mm)
Largest Outside Diameter (O.D.) 4.161 inches (105.70 mm)
Gasket Inside Diameter 0.846 inches (21.50 mm)
Rated Flow Velocity 2.11 GPM (8.00 L/min)
Bypass Valve (BPV) Setting No Bypass Valve Incorporated
Upgrade Position Current premium design revision upgrade replacing legacy filter model FS20075

Cross References

Brand / Manufacturer Part Number
Baldwin PF9928
Carquest 96636
Donaldson P557004
Fleetguard (Main Product) FS36401
Fleetguard (Predecessor) FS20075
Hastings FF1286
Kenworth K371004
Luber-finer L5094F
NAPA 600249
Paccar K317005, K371004, K371005, K371009, K37-1004
Wix WF10249

Applications & Compatibility Guide

Category Usage & Compatible Truck Models
Recommended Use • Specifically designed as a direct original equipment (OE) replacement filter cartridge tailored to fit the integrated Paccar chassis-mounted fuel processing housing element on modern heavy-duty commercial fleets.
Truck & Engine Models • Kenworth Platforms (with Paccar fuel filter housing setup): - Kenworth T660, T680, T800, T880, W900 models - Manufactured in years: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026. • Peterbilt Platforms (with Paccar fuel filter housing setup): - Peterbilt 367, 386, 389, 567, 579 models - Manufactured in years: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026. • Compatible Engine Groupings: - Paccar MX, MX-11, MX-13 engines - Cummins ISL, ISL9, ISX, ISX12, ISX15, X12, X15 engines
Purpose & Function • Employs a multi-layered coalescing StrataPore media filter design that works to permanently capture harmful micro-particulates, road dust, and rust contaminants from diesel fluid. • Separates and traps bypass water molecules safely out of circulation before fuel hits the combustion line, guaranteeing maximum engine longevity, shielding sensitive common-rail fuel system injectors, and significantly reducing ongoing maintenance expenditures.
