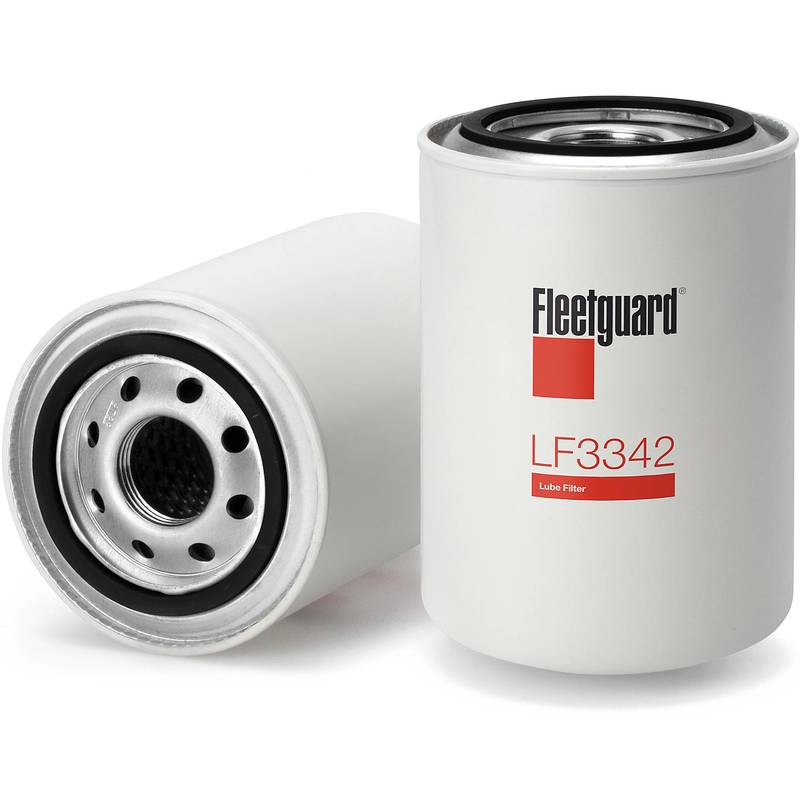

LF3342 FLEETGUARD OIL FILTER KW

Low stock
$15.59
$15.59
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Lube Filter, Spin-On (Full-Flow)
Part Number Fleetguard LF3342
Media Type Cellulose
Thread Size 1 1/8-16 UNF 2B
Length 5.42 inch (137.67 mm)
Largest OD 3.69 inch (93.78 mm)
Gasket OD 2.83 inch (71.98 mm)
Gasket ID 2.46 inch (62.53 mm)
Efficiency 24.60 micron (c) @ 68% / 95% @ 30 Microns (SAE J1858)
Rated Flow 5.02 gpm (19.00 L/min)
Notes Replaces LF766. For upgrade, use LF3789. Standard profile filter for mid-range engines.

Cross References

Brand Part Number
Caterpillar 1R0713, 9N9586, 9N5570, 8T7427, 8N9856, 1N3224
Donaldson P558615, P550425
Baldwin BT339
Wix / NAPA Gold 51607 / 1607
Luber-finer / Fram LFP3970 / PH3970
Mercedes-Benz / Hino A3762700198 / 349261041

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
FREIGHTLINER FS65, FL50, FL60, FL70, FL80, FC70 Cargo, FC80 Cargo, Columbia CL112, Argosy, Champion Bus Cummins ISB 5.9, ISB 6.7, 6B5.9, Cat 3176
FORD Louisville Series (L8000, LT8000, LNT8000, LTS8000), F-Series (F7000, F8000), Cargo, LN Series, WT9000 Cat 3208, 3208T, 3208N 1975, 1979, 1982, 1984, 1985, 1986, 1987, 1988, 1990, 1991, 1992, 1993, 1994, 1995, 1997
VOLVO FL6 Series (FL611, FL612, FL614, FL616, FL617, FL619), FL7, FS7, B10M, B9M, B10R, B7 TD61, TD63, TD71, TD72, TD73, THD100, THD101, THD102, THD103, THD104 1978, 1979, 1985, 1991, 1992, 1994
HINO SG, FD, FB, FA, FE, FF, FG, GC Series J08C, J05C, W04C, H06C, H07C, W06E, EM100 1984, 1986, 1989, 1991, 1992, 1993, 1997, 1998
CATERPILLAR / OFF-HWY Cat: D3, D4, D5, 931, 935, 613, V-Series Lift Trucks Other: Autocar Xpeditor, Case IH 7088, Hitachi ZW 370, Hyundai HX, JCB Fastrac, Komatsu D65/HB365 Cat 3208, 3116, 3126, 3304, Cummins ISC8.3, ISL9, QSL9, L9 1979, 1984, 2005, 2006, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2023, 2024, 2025
