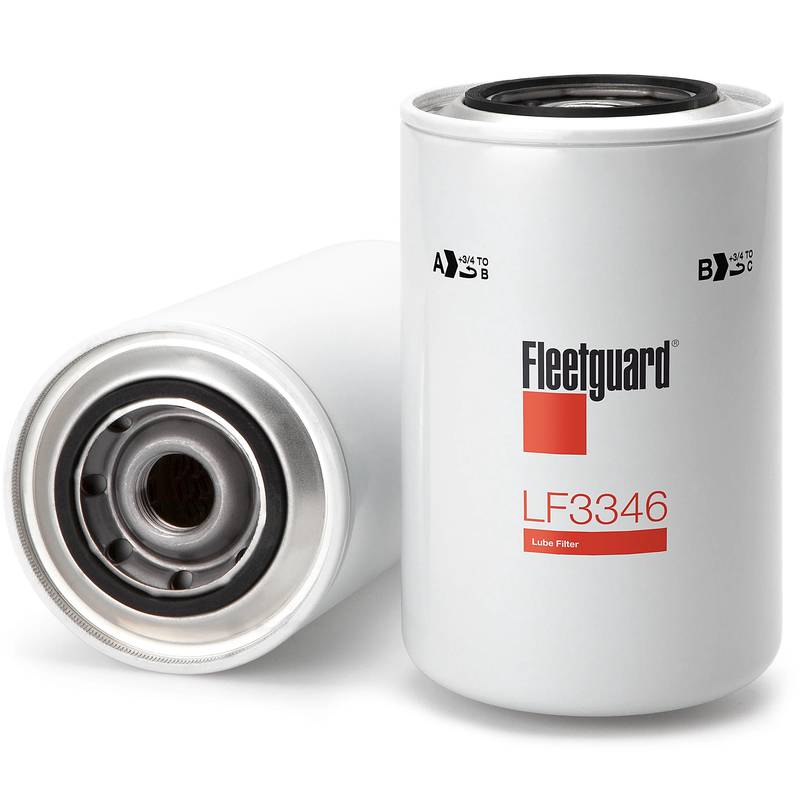

LF3346 FLEETGUARD OIL FILTER KW

Low stock

$0.00

Fully secure checkout
Trusted by thousands
Rated and reviewed

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Technical Specifications

Part Type	Lube Filter, Spin-On (Full-Flow)
Part Number	Fleetguard LF3346
Media Type	Cellulose
Thread Size	1-12 UNF 2B
Length	7.14 inch (181.23 mm)
Largest OD	4.26 inch (108.20 mm)
Gasket OD	2.82 inch (71.63 mm)
Gasket ID	2.46 inch (62.59 mm)
Efficiency	12.85 micron (c) @ 50% / 95% @ 30 Microns
Rated Flow	28.01 gpm (106.00 L/min)
Notes	Standard cellulose spin-on. For high-performance upgrade, use LF3656. Contains bypass and anti-drainback valves.

Cross References

Brand	Part Number
Cummins	3914395, 3903223, 3932217
Iveco / Fiat	4667755, 4667339, 1907570, 1901604
Donaldson	P550422
Baldwin	BT427
Wix / NAPA Gold	51602 / 1602
Perkins / Wilson	SE111P / 901136

Applications / Vehicle Fitment

Make	Models	Engine Specs	Model Years
FORD	B12000, F14000, B1618, F12000, 1618, B1621	6.1L Diesel	1992, 1996
VOLKSWAGEN	Worker Series (31.260E, 26.260E), Worker 8-140, 8-150, 15.180, 18.320E, 17.230, 23210, 17.210, 14.18, 12.18	MWM 4.12, 6.10, 6.12 (TCA, TCAE, TCE)	1992, 1997, 1999, 2000, 2001, 2002, 2004, 2005, 2006, 2008
IVECO / FIAT	Iveco 150-330 Series, Fiat 120-190 Series, Astra BM/64/66 Series, 180-90DT, 160-90, 1580	Iveco 8360, 8365, 8210, 8220, 8280, CP3, MWM TD229	1972, 1974, 1975, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1988, 1989, 1990, 1991, 1992, 1993
OFF-HIGHWAY	Construction: Fiatallis (FG/AD/FR), Komatsu (PC450/D65), Case IH, New Holland, Sennebogen Ag: Valmet, Agrale, Landini, Laverda	Cummins N14, L10, QSL9, MWM 229-6	1980, 1981, 1982, 1984, 1985, 1988, 1989, 1990, 1991, 1992, 1993, 2004, 2005, 2006, 2010, 2011, 2012, 2016, 2017, 2019
BUS / SPECIALTY	Van Hool Alizee/Acron, Thomas Built Saf-T-Liner, Blue Bird All American, MCI J4500, Autocar Xpeditor, Pierce Velocity	Cummins ISB, ISL9, ISC8.3, L9N	2008, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2023, 2024, 2025
