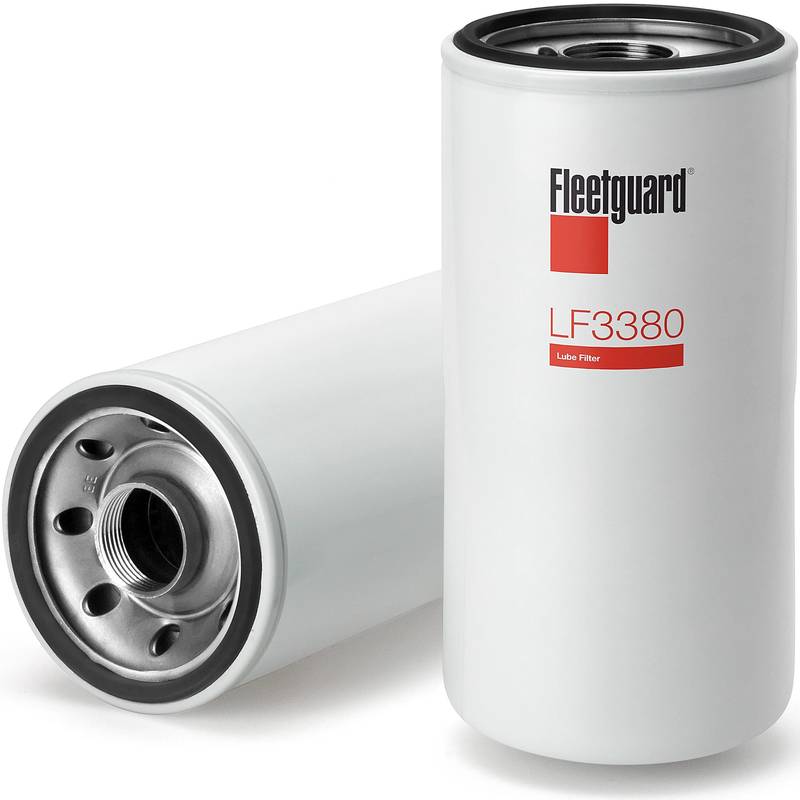

LF3380 FLEETGUARD OIL FILTER KW

Low stock
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Lube Filter, Spin-On (Synthetic Media)
Part Number Fleetguard LF3380
Media Type Synthetic (Upgrade of LF3333)
Thread Size 1 1/2-12 UNF 2B
Length 9.82 inch (249.43 mm)
Largest OD 4.74 inch (120.27 mm)
Gasket OD 4.36 inch (110.74 mm)
Gasket ID 3.89 inch (98.88 mm)
Efficiency 24.60 micron (c) @ 99% (SAE J1858)
Rated Flow 51.52 gpm (195.00 L/min)
Notes Synthetic media version of LF3333. For maximum protection, upgrade to LF9333. Contains bypass valve.

Cross References

Brand Part Number
Cummins 3934430, 3932217
Detroit Diesel 25013192, 23518671, 23530407, 25014306, 23518531
Donaldson / Baldwin P550422 / BT339
Wix / NAPA Gold 51602 / 1602
Mack 5839LF3380
Case IH 545251C1, J934430

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
FREIGHTLINER FLA, FLB, FLC, FLD, FLL, FLT, FL60, FL70, FL80, FL106 Series 60, Series 50, 6V-92, 8V-71, 8V-92 -
INTERNATIONAL F4470, F1954, F2275, F2276, F2574, F2575, F2674, F2675, F9370, CO9670, COF9670, 3800 8210.22, 6-71, 8V-71, 8V-92, 6V-92 1989
FORD L8000, LN9000, L9000, LNT9000, LTS8000, LTS9000, LTL9000, CL9000, CLT9000, W9000, WT9000 6V-53, 6-71, 8V-71, 8V-92, 6V-92 -
KENWORTH / PETERBILT Kenworth: T650, T900, W900, W900B, K100, K100E, K125, C500, T800 Peterbilt: 310, 320, 349H, 352H, 357, 359, 362, 372, 377, 378, 379 Series 60, 6V-53, 8V-71, 8V-92, 6V-92, 12V-71, L10 1988, 1989, 1991
OFF-HIGHWAY Construction: Komatsu (HD465, 510E), Terex (RT175, 5528, 5540, 82-20, 33-09), Grove (1012-TMS300) Ag: Claas Lexion (770, 780), Holmer Terra Dos, Case IH, Doosan SAA6D170E, 12V-149, 16V-71, OM471LA, OM473LA, DL08 1985, 2005, 2011, 2012, 2013, 2018
