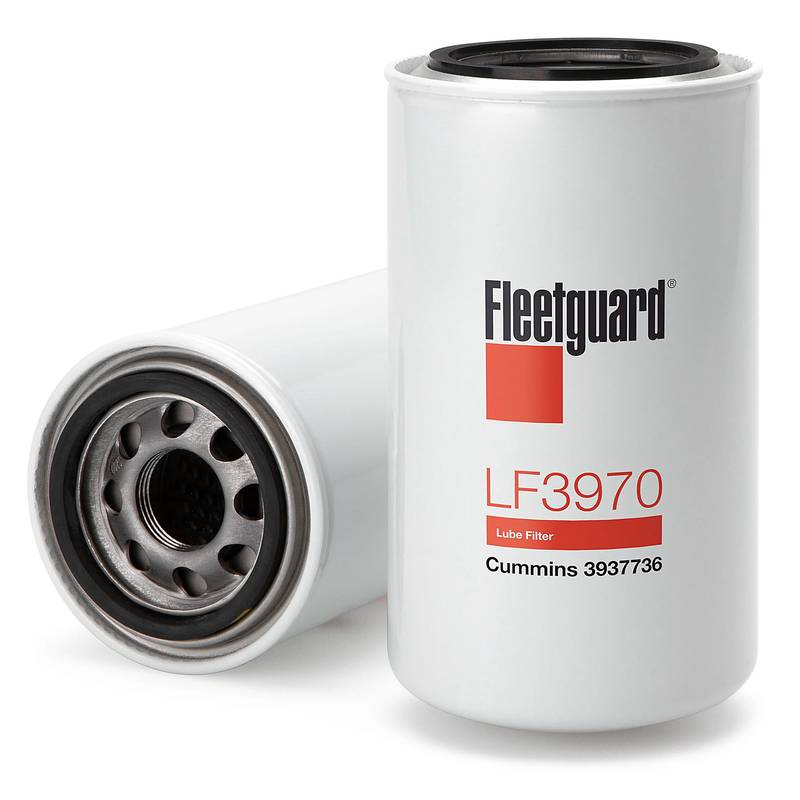

LF3970FLG FLEETGUARD OIL FILTER KW

Low stock
$23.39
$23.39
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Lube Filter, Spin-On (Full-Flow)
Part Number Fleetguard LF3970
Media Type StrataPore™ (Multi-layered synthetic)
Thread Size 1 1/8-16 UNF 2B
Length 6.96 inch (176.78 mm)
Largest OD 3.68 inch (93.53 mm)
Gasket OD 2.83 inch (71.98 mm)
Gasket ID 2.46 inch (62.53 mm)
Efficiency 98.7% @ 24.6 Microns (SAE J1858)
Rated Flow 21.93 gpm (83.00 L/min)
Notes High-capacity primary filter for Cummins B/ISB engines. Replaces LF3729 and LF3937. South American equivalent: LF16480.

Cross References

Brand Part Number
Cummins 3942365, 3937736, 3937144, 5404947, 5296733, 5346640
Case IH / New Holland J942365, J937736, 71101552 / 84476755
Donaldson P550428
Baldwin BT7349
Wix / NAPA Gold 51607 / 1607
Luber-finer / Fram LFP3970 / PH3970
Mack / Volvo 5839LF3970 / 43919927, 14406393

Top Maintenance Kits

Kit Number Contents Included
MK14670 LF3970 (Lube), FF63054NN, FS19727, TF150821, UF1061, AF27706, AF26427, FF5632, HF35296, HF35387, AF26154
MK14717 LF3970 (Lube), FS20176, FF63054NN, CV52001, AF27817, UF1061, HF6343, HF35387, AF26154, AF26427
MK13154 LF3970 (Lube), FS1000, FF5421, HF6243, HF6730, 3312097S

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
FREIGHTLINER M2 106, 108SD, S2C, S2RV, B2, MT55, MT45, FC70/FC80 Cargo, FS65, XC Raised Rail, XC Modular Rail, XB Line Chassis, MB Line, MC Line Cummins B6.7, ISB 6.7, ISB 5.9, 6B5.9, Cat 3176 1999, 2001, 2002, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
INTERNATIONAL MV607, MV60H, HV507, HV607, DuraStar (4300, 4400), WorkStar (7300, 7400, 7500), 9200 SBA, 9300, 9400, HC607 Cummins B6.7, ISB 6.7, Cat 3176, 3208 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
PETERBILT / KENWORTH Peterbilt: 330, 325, 337, 220, 348, 210, 340, 536, 200 Kenworth: T170, T270, T280, T300, T370, T380, K270, K370, K300, K360 Paccar PX-6, PX-7, Cummins ISB 5.9, ISB 6.7, Cat 3176, 3208 2004, 2005, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
FORD F-650, F-750 Super Duty, F800, F450, Cargo Series (1729, 2423, 2429, 2623, 2629), CLT9000, LNT8000, L-Series Cummins ISB 6.7, ISB 5.9, 6.7L, Cat 3208, 3208T 1997, 1999, 2006, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
OFF-HIGHWAY Hyundai: HL740, HL757, HL760, HL960, HX220, R140, R210, R235, R290 JCB: Fastrac (2155, 3200, 3230, 435S, 7170-7270), 418S, 427 Agri, 437ZX Other: Komatsu PC210, Vogele Pavers, Hitachi ZW140/150/180/220 Cummins QSB 4.5, QSB 6.7, QSL9 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2023
BUS / MOTORHOME Blue Bird: All American (FE, RE), Vision, TC2000 Thomas Built: Saf-T-Liner (C2, HDX, MVP), Vista Motorhomes: Tiffin (Allegro, Breeze, Phaeton), Monaco (RSR, RR4R), Foretravel Cummins B6.7, ISB 6.7, ISL G, ISC 8.3 1990, 1991, 1996, 1998, 1999, 2000, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
