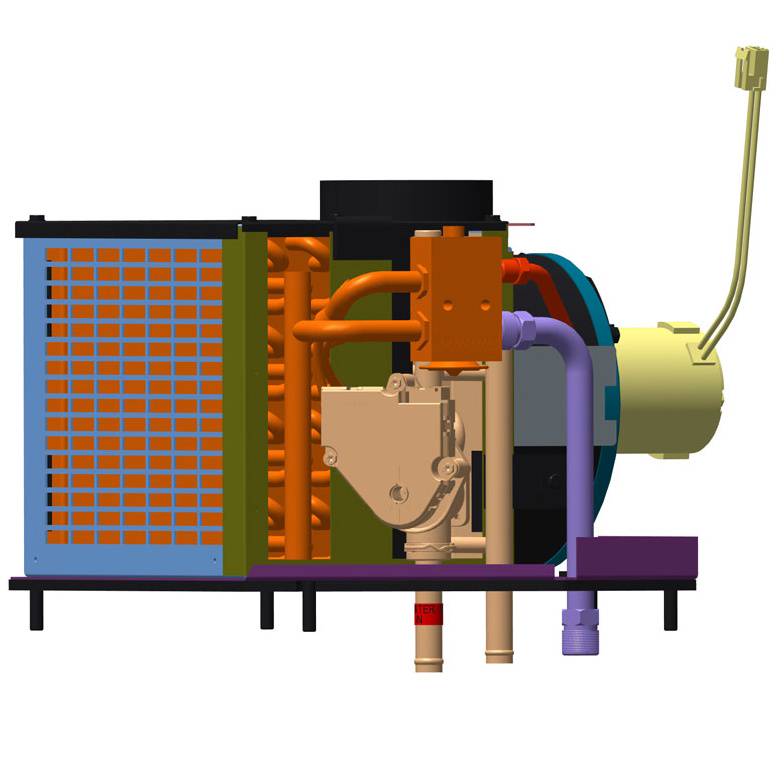

1002949575 COMBO BUNK 12V TEMPERATURE FOR KENWORTH SLEEP APPLICATION F31-1321-100 , K142-537-1

Low stock
$2,353.78
$2,353.78
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Feature Details / Value
Product Type Combo Bunk Complete Sleeper HVAC Assembly Unit
Operating Voltage 12V DC
Heating Performance Approx. 29,500 BTU/Hr @ 240 CFM
Cooling Performance Approx. 10,500 BTU/Hr @ 285 CFM
System Integration Complete Heater and A/C Evaporator Core Loop Setup
Air Venting Direction Upward-Facing Exhaust Duct Orientation
Control Features Integrated Water Valve on the Heater Core Intake Side
Housing Construction Heavy-Duty Reinforced Protective Outer Shell Shielding
Approx. Dimensions 18.00" Length x 18.00" Width x 15.00" Height
Approx. Weight 28.00 lbs (12.70 kg)

Cross References

Brand / Manufacturer Part Number
Kenworth K142-537-1, F31-1321-100
Old Climatech K142-537-1
Old Kysor / Bergstrom 3314001, 1002949575
Previous Part Number Reference 740147
TRP (Main Product) F31-1321-100

Applications & Compatibility Guide

Category Usage & Compatible Truck Configurations
Recommended Use • Engine cooling loop and interior climate management assembly intended as a premium direct replacement for original sleeper bunk HVAC modules.
Target Platforms • Kenworth Sleeper Fleets: Engineered to integrate cleanly into standard chassis layouts across matching conventional long-haul configurations. • Peterbilt Sleeper Fleets: Universally swappable on matching secondary cabin climate footprints. • Cabin Layout Note: Specifically optimized for bunk configurations that are not equipped with an internal couch layout option.
Key Benefits • Dual Temperature Control: Delivers powerful, rapid response heater output and refrigeration performance seamlessly inside a single space-saving modular envelope. • Vibration Resistance: Structural base and mounting brackets are configured to mitigate ongoing chassis harmonics and engine vibrations, avoiding early core fractures or structural coolant pipe stress leaks. • Enhanced Climate Comfort: Purposely tuned to ensure consistent, stable volumetric air displacement across the sleeping berth zone during extended vehicle resting cycles.
