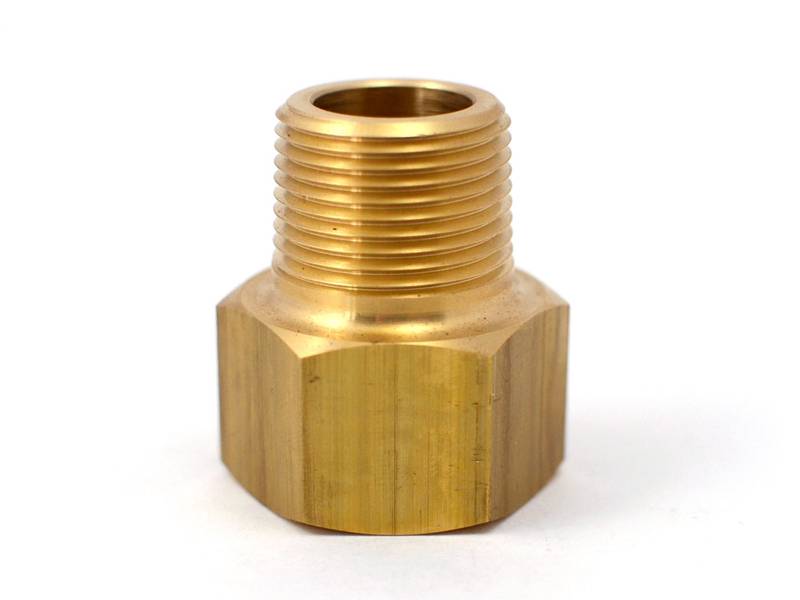

ADP-201 ADAPTER FOR T-201 SERIES (3/4-14 NPT) VALVES

Low stock
$0.00
$0.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Feature Details / Value
Product Type Extension Adapter (Extensor)
Thread Size 3/4-14 NPT (National Pipe Tapered Thread)
Recommended Torque 531 in-lbs / 44 ft-lbs (60 Nm)
Weight 0.46 lbs (208 g)

Cross References & Compatibility

Brand / Category Part Number / Model
Fumoto (Main Product) ADP-201
Compatible Valve Series Fumoto T-201 Series (3/4-14 NPT Thread)
Compatible Valve Models T201, T201N, T201NS

Applications & Installation Guide

Category Instructions & Guidelines
Purpose & Function • Specifically designed to help your Fumoto Valve fully seat onto the oil pan on vehicles that feature a recessed oil drain port configuration. • Prevents the valve body or lever mechanics from hitting the walls of a recessed drain plug cavity. • Warning: If the use of this extension adapter positions your Fumoto Valve too close to the ground, do not use it to avoid potential road hazard damage.
Standard Installation 1. Prep: Clean the oil pan port surface completely after draining old oil. 2. Install Adapter: Thread the ADP-201 adapter into the oil pan port carefully by hand to prevent cross-threading. Tighten securely to the recommended torque specification of 44 ft-lbs using an appropriate wrench. 3. Mount Valve: Thread your 3/4-14 NPT Fumoto valve into the newly installed adapter by hand. Fully tighten the valve past hand tight using a crescent wrench directly on the valve body. Ensure the valve remains adequately clear of the ground.
