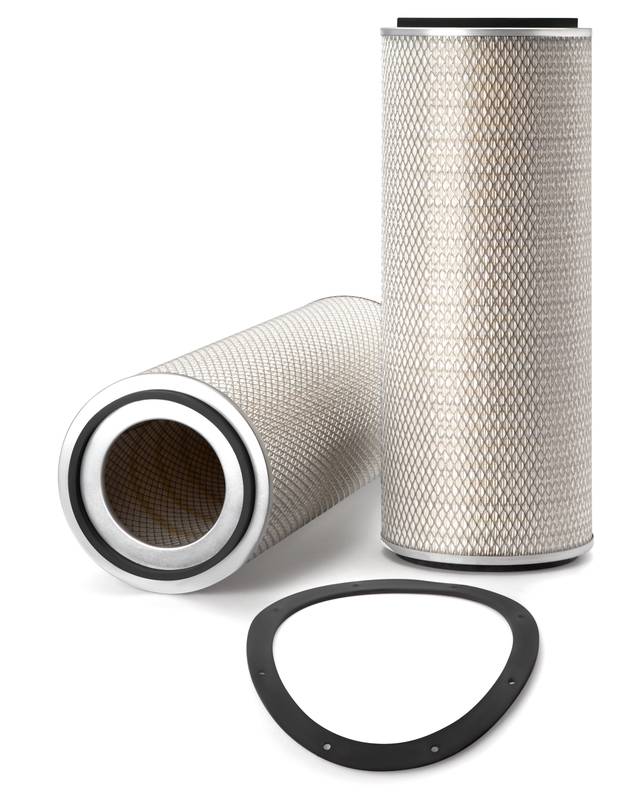

AF1616 AIR FILTER PRIMARY

Low stock
$126.88
$126.88
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Feature Details / Value
Product Type Heavy-Duty Primary Engine Air Filter Element
Filter Shape Round Cylindrical
Seal Type Axial Seal Configuration
Media Material Premium Cellulose Media (High Contaminant Capacity)
Overall Height / Length 27.00 inches (685.80 mm)
Largest Outside Diameter (O.D.) 10.402 inches (264.21 mm)
End 1 Inside Diameter (I.D.) 6.048 inches (153.62 mm)
End 2 Outside Diameter (O.D.) 10.402 inches (264.21 mm)
Efficiency Test Standard ISO 5011 Certified
VMRS Code 041-001-005

Cross References

Brand / Manufacturer Part Number
Alliance ABPN10GAF1616
Baldwin PA2493, AF580, LL2493
Carquest 87941
Caterpillar 7C8313, 3I0774, 3I0293
Donaldson P181016, P128494, P182016, DBA5016
Fleetguard (Main Product) AF1616
Fram CA2588, CA2539
General Motors (GMC) 8881290, 25041980
Luber-Finer LAF8494, LAF8494MXM
Mack 2MD3156P3, 2MD3161P3
Motorcraft FA711
NAPA 2941
PAI FAF4569
White 220054401, 220055002, 220054406
Wix 42941, 42941NP

Applications & Compatibility Guide

Category Usage & Compatible Equipment Models
Recommended Use • Designed for heavy-duty commercial trucks, construction machinery, and industrial engines operating under rigorous conditions. • Functions as the primary (outer) defense layer within the air intake module to block atmospheric dust and dirt from entering the combustion cylinder.
Compatible Brands & Platforms • Caterpillar (CAT) & Case Equipment: - Optimized for earthmoving, excavation, and heavy industrial machinery utilizing matched CAT or Case engine setups. • GMC & Chevrolet Medium/Heavy Duty Trucks: - Topkick, Kodiak, and traditional commercial chassis configurations running matching heavy-duty intake designs. - Fabricated/Supported in individual model years: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006. • Mack & White Heavy Fleets: - Compatible with vintage and regional vocational models depending on the original assembly filter footprint.
Purpose & Function • Traps soot, fine dust, pollen, and microscopic road particles before the raw intake airstream makes contact with the combustion chambers. • Ensures a continuous supply of clean, purified air, optimizing the engine’s air-to-fuel ratio, boosting fuel economy, and shielding internal engine hardware against accelerated particulate wear.
