CTO-3758X BRAKE DRUM (FRONT, 16.50" X 5")

Low stock


Regular price $214.49
Sale price $214.49 Regular price

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

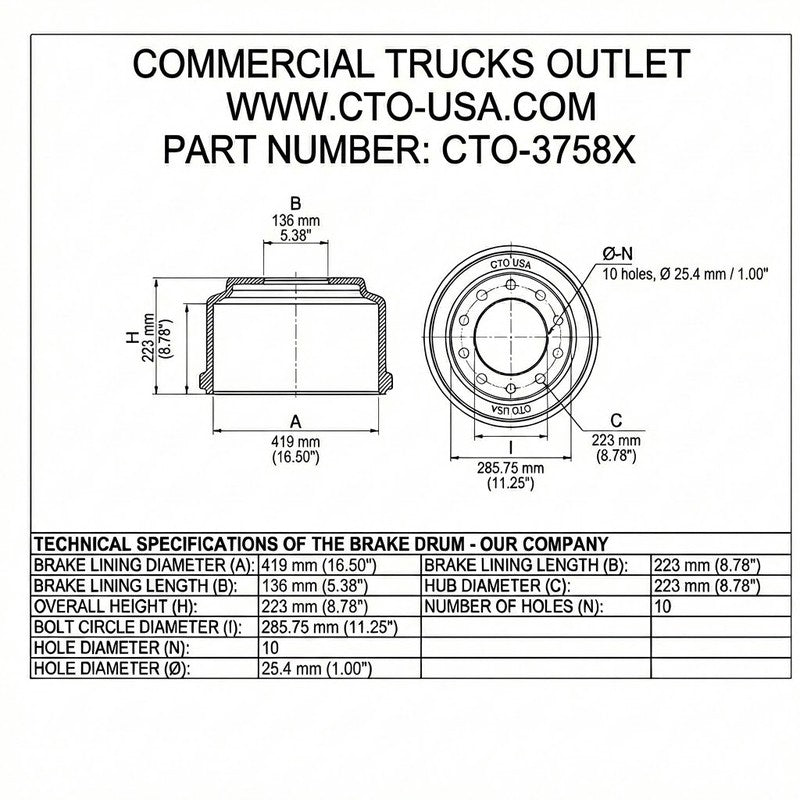

Technical Specifications

Part Type Front Steer Brake Drum
Industry Number 3758X (Gunite) / 66896 (Webb)
Brake Size 16.5" x 5" (16.5 in Diameter x 5 in Width)
Mounting Type Hub Pilot (Unimount) / Outboard
Overall Depth 8.78" (Approx 223mm)
Bolt Pattern 10 Holes on 11.25" Circle
Pilot Hole 8.78"
Weight ~86 - 92 lbs (Lightweight for Steering)

Cross References

Brand Part Number
CTO CTO-3758X
Automann 145.3758X
ConMet 10009927
Durabrake 3758X
Gunite (Accuride) 3758X
KIC 60002
Meritor 85-123398
Webb Wheel 66896, 66896B

Application Guide

Compatible 16.5" x 5" Brake Shoes
Standard Steer Axle applications (Freightliner, Kenworth, International): 4720 (Meritor Q Plus) - Most Modern Trucks. 4719 (Eaton ES) - Common on Paccar (KW/Pete). 4524 (Meritor Old) - Older models.
⚠️ WIDTH WARNING (5" vs 6"): Do not confuse this with the 16.5" x 6" drum (Part # 3753X or 3807X). This drum (3758X) is for 5-inch wide shoes. If installed on a 6-inch brake system, the shoes will overhang and fail. Measure your shoes!
