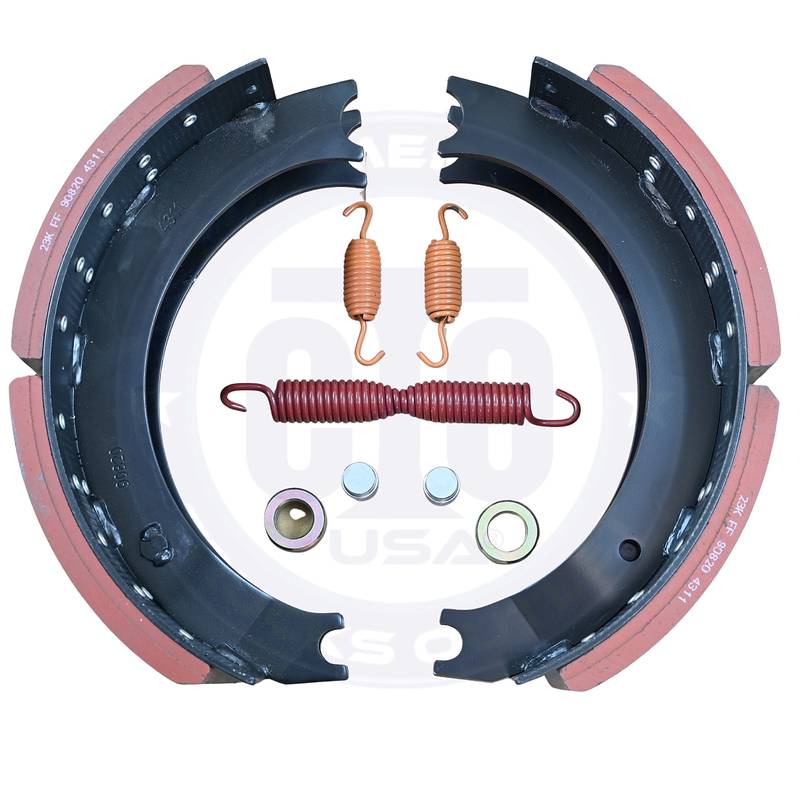

CTO-4311 NEW BRAKE SHOE KIT 23K (REAR, 7" EATON STYLE)

Low stock
$121.04
$121.04
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Brake Shoe Kit (Single Anchor Pin)
FMSI Number 4311, 4311E
Dimensions 16.5" x 7" (16.5 in Diameter x 7 in Width)
System Eaton Single Anchor Pin
Visual ID "Hook" or "Half-moon" shape at bottom for single central pin.
⚠️ System Warning NOT Compatible with 4707. Same dimensions (16.5x7), but 4311 uses a Single Anchor, while 4707 uses Dual Anchors.

Cross References

Brand Part Number / Description
CTO CTO-4311
Abex (Federal-Mogul) EX4311E
Automann 110.4311E
Bendix KT4311EBA200 (Basic 20K), K043329
Euclid E-4311EHD-N
Fleetrite (International) FLT2124311E
Haldex GF4311EG (Gold Seal), GR4311E (Economy)
Meritor XKEG4311E (Econ), XKMG2L4311E (Std), R4311E (Shoe), A3222T1320 (Core)
Stemco / Crest XL4311E

Hardware & Technical Notes

Standard Hardware Kit Euclid E-1887ASHD / Meritor MKT4311EHD
???? PRO TIP: "Low Mount" vs "High Mount" There are two versions of this shoe. Check the stamp on the metal web: 4311E (Low Mount - Common): Distance from roller center to anchor center is 4". Uses kit E-1887. 4311EH (High Mount - Rare): Distance is shorter (3-9/16"). The roller sits higher. Uses kit E-3801.
