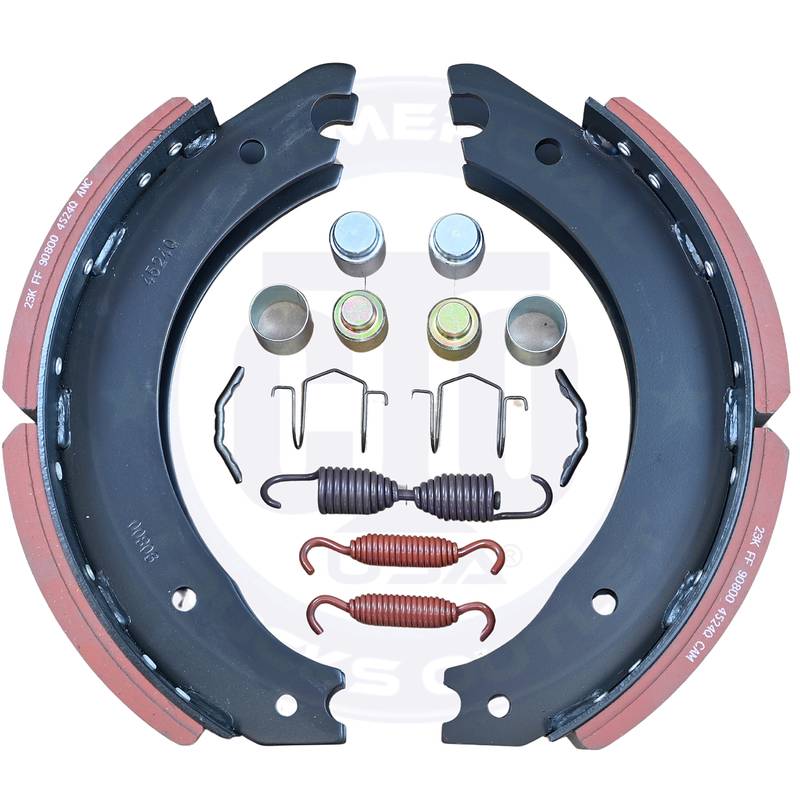

CTO-4524Q NEW BRAKE SHOE KIT 23K (FRONT, 5" MERITOR STYLE)

Low stock
$112.37
$112.37
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Brake Shoe Kit (Standard Duty)
Position Front Steer or Trailer Axle
FMSI Number 4524, 4524Q
Dimensions 16.5" x 5" (16.5 in Diameter x 5 in Width)
System Meritor "Q" (Standard)
Era / Application Equipment manufactured approx. pre-1994.
Visual ID Identical look to 4720 but not reinforced for Q Plus tension.

Cross References

Brand Part Number / Description
CTO CTO-4524Q
Abex (Federal-Mogul) EX4524Q (Standard)
Automann 110.4524Q
Bendix KT4524QBA200 (Basic), K043322
Euclid E-4524 (Shoe)
Fleetrite (International) FLT2124524Q
Haldex GD4524QJ (Gold Seal), 4524Q
Meritor XK2124524Q (Reman), R4524Q (Lined), A3222D2006 (Core)
Stemco / Crest XL4524Q

The 16.5" x 5" Guide (Critical)

Part Number System Key Difference / Hardware
4719 Eaton Totally different design. Not Compatible.
4524 Meritor Q (Old) Uses Kit 8081 (Thin Springs). Standard Duty.
4720 Meritor Q+ (New) Uses Kit 8824HD (Thick Springs). Heavy Duty.

Hardware & Compatibility

Required Hardware Kit KIT 8081 / Euclid E-2207 (Standard Duty - Thinner Springs)
⚠️ WARNING: Do NOT use KIT 8824HD (Heavy Duty Q Plus springs) with this 4524 shoe unless you are upgrading the entire system and verify the shoe web strength. The standard 4524 is not reinforced for Q Plus tension.
