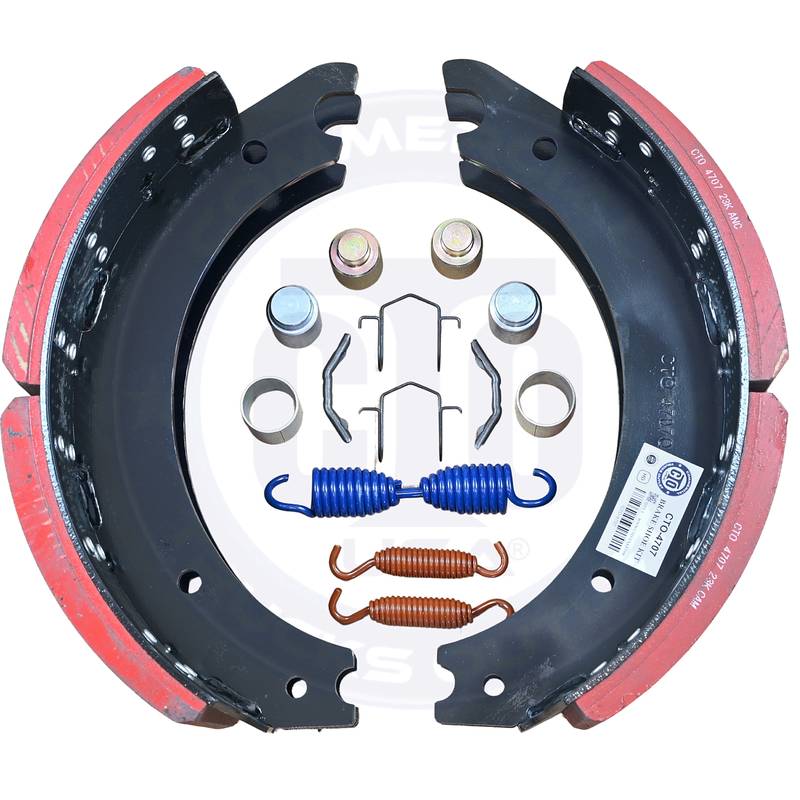

CTO-4707 NEW BRAKE SHOE KIT 23K (REAR, 7" MERITOR STYLE)

Low stock
$96.40
$96.40
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Heavy Duty Brake Shoe Kit (Standard 23K)
FMSI Number 4707, 4707QP, 4707Q
Brake Size (Dimensions) 16.5" x 7" (16.5 in Diameter x 7 in Width)
System Meritor "Q Plus" (Q+)
Axle Rating 23,000 lbs GAWR (Standard 23K)

Required Hardware

Hardware Kit P/N KIT 8824HD
Alternative Numbers Euclid E-2769SHD, Batco 08-116040
Note Includes Heavy Duty return spring (Thick coil).

Cross References (23K Standard)

Brand Part Number / Description
CTO CTO-4707
Abex (Federal-Mogul) EX4707Q (Std), RSD4707 (RSD Compliant)
Automann 110.4707Q
Bendix KT4707QBA231 (Basic 23K), KT4707QBA200 (Economy), K043335
Euclid E9080
Fleetrite (International) FLT2124707QP , FLTEN4707QPK , S-23750
Haldex GD4707QJ (Gold Seal), GG4707QG (Gripper), GR4707Q (Reman)
Marathon K4707QP (General), NKFL4707QP (Flo-Pro)
Meritor XK2124707QP (Reman 23K - Gold Std), XK3124707QP (Premium/RSD), R4707QP (Lined), A3222Q2201 (Shoe)
Stemco / Crest XL4707Q

Axle Application

Axle Manufacturer System Type Common Applications
MERITOR Q Plus (Q+) Drive Axles (Trucks/Tractors) & Trailer Axles. Most common over-the-road shoe.
