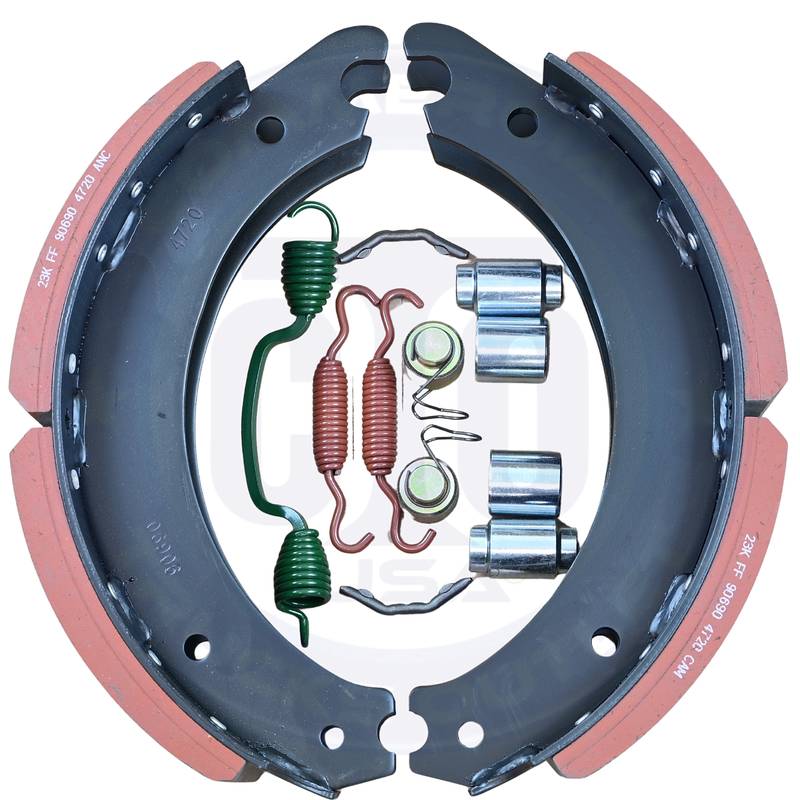

CTO-4720Q NEW BRAKE SHOE KIT 23K (FRONT, 5" MERITOR STYLE)

Low stock
$112.67
$112.67
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Front Brake Shoe Kit (Modern Standard)
Position Front Steer Axle (Common) / Trailer Axle
FMSI Number 4720, 4720QP, 4720Q
Dimensions 16.5" x 5" (16.5 in Diameter x 5 in Width)
System Meritor "Q Plus" (Q+)
Application Modern Freightliner, International, Volvo (Post-1995).

Cross References

Brand Part Number / Description
CTO CTO-4720Q
Abex (Federal-Mogul) EX4720Q
Automann 110.4720Q
Bendix KT4720QBA231 (Basic 23K), K043323
Euclid E9070
Fleetrite (International) FLT2124720QP
Haldex GD4720QJ (Gold Seal), GG4720QG (Gripper), 4720Q
Meritor XK2124720QP (Reman), R4720QP (Shoe), A3222F2008 (Core), XK3124720QP (Premium)
Stemco / Crest XL4720Q

The 16.5" x 5" Family Guide

Part Number System Era Key Difference
4720 (This Part) Meritor Q+ (Modern) Uses Thick Springs (Kit 8824HD). Stronger web.
4524 Meritor Q (Old) Uses Thin Springs (Kit 8081). Weaker web.
4719 Eaton ES Different anchor/web shape. Incompatible.

Hardware & Fitment

Required Hardware Kit KIT 8824HD / Euclid E-2769SHD (Same heavy duty kit used on 4707)
⚠️ Installation Note: This is a Q Plus shoe. Do not use old/thin springs from a 4524 application. The return spring requires high tension to function correctly on modern steer axles.
