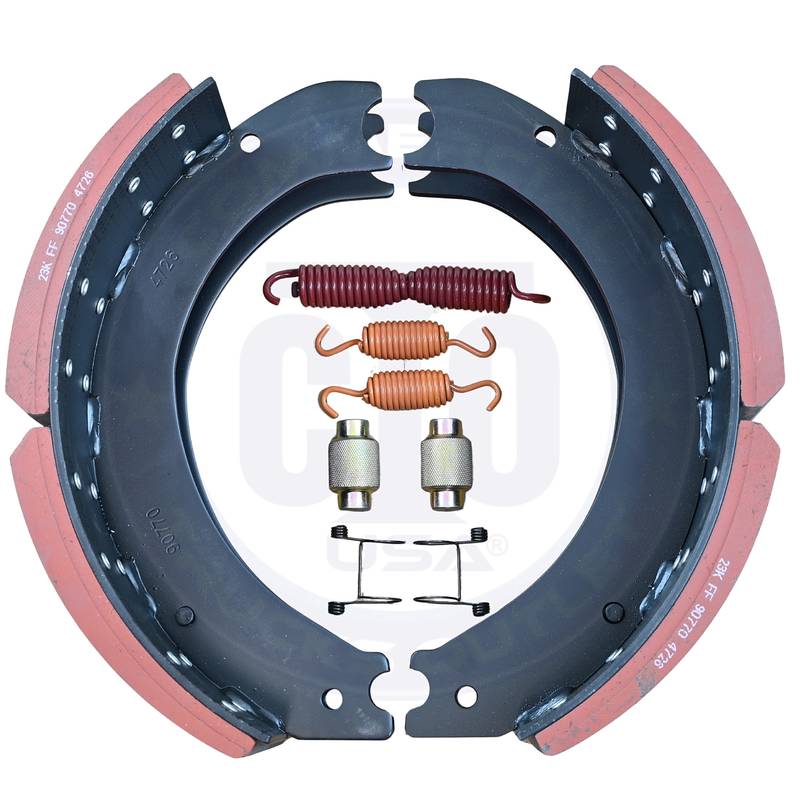

CTO-4726 NEW BRAKE SHOE KIT 23K (REAR/TRAILER 8" EATON STYLE)

Low stock
$123.93
$123.93
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Severe Duty Brake Shoe Kit (Extra Wide)
System Eaton ES (Extended Service)
FMSI Number 4726, 4726E, 4726ES
Dimensions 16.5" x 8-5/8" (16.5 in x 8.625 in)
Application Drive Axles: Refuse Trucks, Heavy Dump, Mining.
Visual ID Specific Eaton web geometry (Different from Meritor 4711).

Cross References

Brand Part Number / Description
CTO CTO-4726
Abex (Federal-Mogul) EX4726E
Automann 148.4726E
Bendix KT4726EBA230 (Basic), K043342
Euclid E-4726E
Fleetrite (International) FLT2124726E
Haldex GG4726E (Gold Seal), GR4726E (Reman), 4726E
Meritor XK2124726E (Reman), R4726E (Shoe), A3222H1438 (Core)
Stemco / Crest XL4726E

The "Extra Wide" Confusion: 4726 vs 4711

Feature 4726 (Eaton) - THIS PART 4711 (Meritor)
System Type Eaton ES (Single/Floating Anchor) Meritor Q Plus (Dual Anchor)
Hardware Long side return springs Thick central return spring (Q+)
Typical Truck Kenworth / Peterbilt (Heavy Duty) International / Freightliner (Heavy Duty)

Hardware & Application

Required Hardware Kit Euclid E-9046 / KIT 8000 (Check width spec) Includes rollers, roller pins, long return springs, retainer clips.
Typical Applications
Heavy Duty Vocational: Garbage Trucks, Heavy Dumps, Mining Trucks. Note: Commonly found on Kenworth/Peterbilt heavy duty chassis with Eaton axles.
