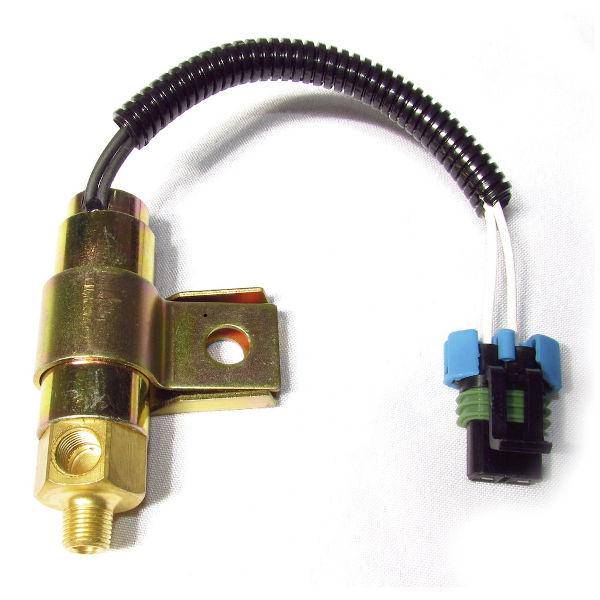

Fan Clutch Solenoid - F224904
Low stock
Regular price
$79.30
Sale price
$79.30
Regular price
Unit price
per
Couldn't load pickup availability
Description
Applications & Compatibility
| Category | Usage & Application Guidelines |
|---|---|
| Vehicle Type | • Semi-Trucks / Commercial Heavy-Duty Trucks |
| Target Platforms | • Direct OEM replacement for **Freightliner** multiple models (specifically optimized for **Freightliner Cascadia** 2010–2015 models). • Compatible with **Detroit Diesel DD15 (15L)** engine setups featuring integrated electronic cooling management. • Also fits certain Western Star 49X and Peterbilt 389 platforms running a matching engine family. |
| Purpose & Function | • Controls the precise activation and engagement regulation of the electronically controlled engine fan clutch system. • Ensures rapid response to thermal changes, preventing engine overheating and securing optimal thermal management under extreme operating conditions. |
Specifications
| Feature | Details / Value |
|---|---|
| Product Type | Fan Clutch High Temperature Air Solenoid Valve |
| Operating Voltage | 12 VDC |
| Valve Configuration | Normally Open (N.O.) |
| Inlet Port Size | (2) 1/8" - 27 NPTF (Female) |
| Outlet Port Size | (1) 1/8" - 27 NPTF (Male) |
| Operating Pressure | 80 PSI - 160 PSI |
| Flow Rate | 2.77 SCFM (Standard Cubic Feet/min) @ 120 PSI |
| Materials | Heavy-Duty Iron, ABS Plastic / Reinforced Nylon Composite |
| Electrical Resistance | 17 - 19 Ohms (18.2 Ohms typical) |
| Product Department | Electrical / Cooling System / Sensors |
Part Numbers & Cross References
| Brand / Manufacturer | Part Number |
|---|---|
| Advance Truck Parts | A06-26631-000 |
| Fleetsworld / Aftermarket | ACF-60781208 |
| Fortpro (Main Product) | A06-26631-000 (F224904) |
| Freightliner / OEM | A06-26631-000, A06-26631-000R, A0626631000 |
| PAI | 740420, 740420E |
| TKL | TKL50201 |
| World American | 2003, 5020-1, 85020-1 |
