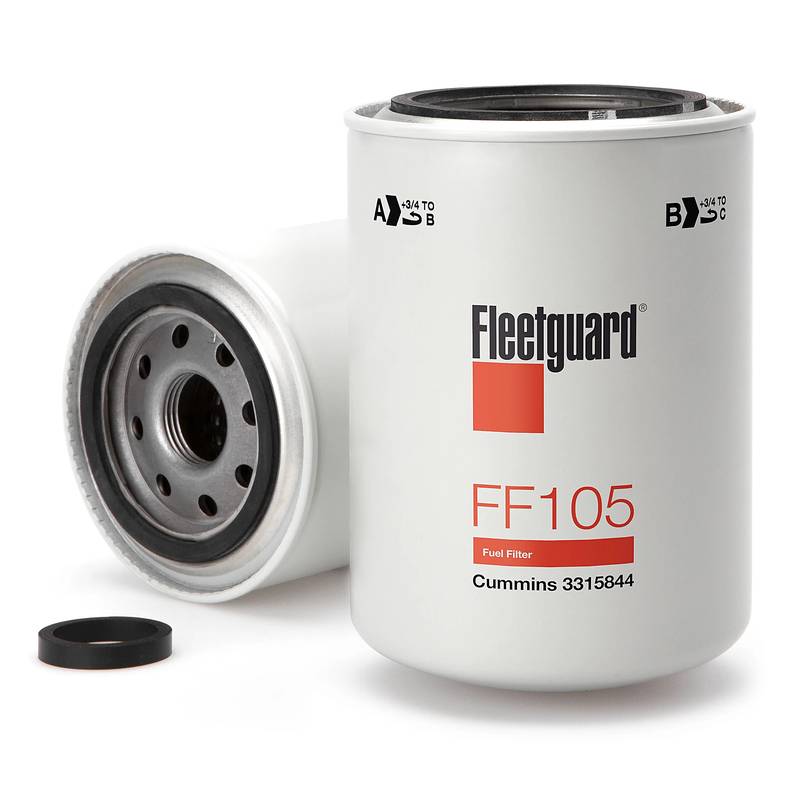

FF105 FLEETGUARD FUEL FILTER KW

Low stock


Regular price $19.49
Sale price $19.49 Regular price

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed


Technical Specifications

Part Type Fuel Filter, Spin-On
Part Number Fleetguard FF105
Thread Size 1-14 UNS-2B
Length / Overall Height 5.41 inch (137.41 mm)
Largest OD 3.70 inch (93.98 mm)
Gasket OD 2.83 inch (71.88 mm)
Gasket ID 2.46 inch (62.48 mm)
Rated Flow 1.51 gpm (5.70 L/min)
Efficiency 17.30 micron (c) @ 96% (SAE J905)
Media Type Cellulose
Standpipe No
Upgrade Options FF5332 (Synthetic Media) or FS1212 (Separator)

Cross References

Brand Part Number
Cummins (OEM) 3315844, 154709, 1492249, 3308638, 891733, C3315844, 126517, 154710, 142784, 154744, 127674, 140617, 3315846, 138627, 3315804, 252811, 158172, BM76976, BM78798, BM68669, BM78669
Baldwin BF957
Donaldson P550105
Wix 33109
NAPA Gold 3109
Luber-finer LFF5
Fram P3528A
Caterpillar 9Y4402, 1R0711, 3I0750, 9Y4401, 3I1143
Komatsu 6003198320, 6003198321, 6127716500, 6151717201, 6162736502, 6221716302, 6684718600, CUFF105
Case IH BM59678, 28035, 244242R91, 701350C1
Hitachi 4206090, 4175915
John Deere RE42050
Volvo 891733, 1572081, V1572801, 991215847
General Motors 5577569, 6436241, 5576873, 25011164, 23516189
Ford / Motorcraft C6TZ9155A, 72MF9176AA / FL180, FD791, FD152

Maintenance Kits

Kit Number Contents Included
MK198 FF105 (Fuel), LF670 (Lube), LF750B (Lube Bypass), WF2071 (Coolant), 164159S (Gasket)
MK3CE LF750B (Lube Bypass), FF105 (Fuel), WF2071 (Coolant), LF516 (Lube)

Applications / Vehicle Fitment Overview

Make / Equipment Type Common Models Engine Compatibility
HEAVY-DUTY TRUCKS Ford: L-Series (L/LN/LT/LTS/LTL/LL/LS 8000 & 9000), W-Series (W/WT 1000 & 9000), C8000, CL9000 International (IHC): 9000 Series (9200, 9370, 9400, 9600, 9700), Transtar, Paystar, Fleetstar, S-Series Peterbilt: 357, 359, 362, 372, 377, 378, 379 Kenworth: W900, T800, T600, K100, C500 General Motors: Astro, Brigadier, General, C7000 White / Autocar: WG, WX, WXLL, ACL, AT, DC Cummins NT, NTC, NH, N14, L10, M11, V555, V903, KTA19
CONSTRUCTION EQUIPMENT Komatsu: Dozers (D80, D85, D135, D500), Loaders (WA450), Excavators (PC650) Hitachi: Excavators (EX270, EX300, EX550, EX600, EX700, EX750, EX800, EX1100, EX1800) Terex / Euclid: Haul Trucks (R24, R25, R40, R60, R75) Grove: Cranes (RT58, RT740, TMS300, TM1400) Ingersoll-Rand: Compressors/Drills (P750, XP900, HP1300, DM45) Champion / Galion / Huber-Warco: Motor Graders (710A, 720, 730) Cummins 6CT8.3, NT855, N14, LTA10, KTA1150, KTA19
AGRICULTURAL TRACTORS Steiger: Panther (KP-1325/1360/1400), Cougar (ST-280, KM-280), Tiger, Bearcat Versatile: 846, 876, 936, 946, 975, 9480, 9680, 9880 Case IH / John Deere: Large articulating tractors Ag-Chem: Terra-Gator, RoGator Cummins NT855, NTA855, V-504, V-903
