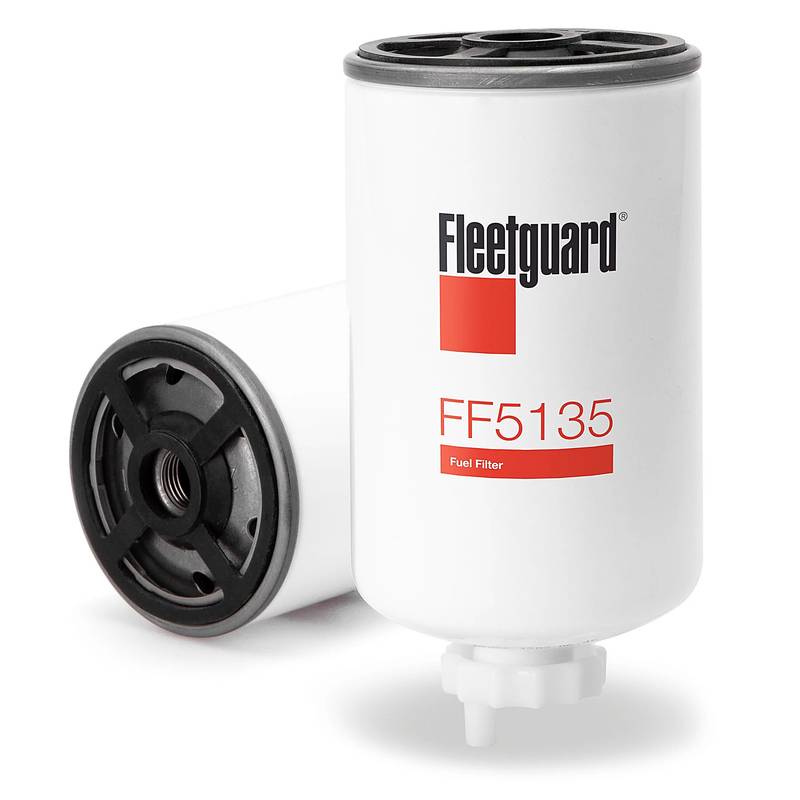

FF5135 FLEETGUARD FUEL FILTER KW

Low stock
$28.59
$28.59
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Fuel Filter, Spin-On
Part Number Fleetguard FF5135
Media Type Cellulose (Standard Media)
Thread Size M16 X 1.5-6H INT
Length 6.14 inch (156.00 mm)
Largest OD 3.03 inch (77.00 mm)
Gasket OD / ID OD: 2.76 inch (70.00 mm) / ID: 2.44 inch (62.00 mm)
Rated Flow 0.66 gpm (2.50 L/min)
Efficiency Test Std 17.00 micron (c) @ 98.7% (ISO 19438)
Standpipe No
Related Parts Replaces FF5060. Metal version of FF42006. Upgrade to FS19599 (StrataPore).

Cross References

Brand Part Number
Donaldson P550588
Baldwin BF587-D, BF5587D
Wix / NAPA 33472 / 3472
Fram P1145
Bosch 1457434106, 1457434314, 1457434121, 1457434113, 1457434110, 1457434107, 1457434105, 1457434101
Deutz 2133943, 1174482, 1174398, 1174391
Volvo / Volvo-Penta 8385932, 1257201, 12572011, 12572012, 3976655, 243464, 13887492
VW / Audi / V.A.G. 68127177, 068127177B, 68127177B
Case IH / New Holland J843760RP, 288811A1, 87553155, 146343A1, 84271537, 86555246
Caterpillar 5S0481, 14SX8412, 1555410, 1394834, A000015986
Perkins 26561118, 26569051, 26560608, 36561118

Applications / Vehicle Fitment

Make Models / Equipment Engine Specs Model Years
JCB 8008, 8010 CTS, 8014 CTS, 8015, 8016 CTS, 8017, 8018, 8020 CTS, 8214, Fastrac Series, Robot Series Perkins / 403D-11 / 1004.4 1993, 1998, 2000, 2001, 2002, 2004, 2005, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
BOBCAT Mini Excavators (E08, E10, E14, E16, E17, E19, E20, E25, E26, 317, 319, 320, 321, 322, 323, 324, 418), MT50, MT52, 453, 463 Kubota D722, D1105, V1505 2002, 2004, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
CASE IH CX15, CX16, CX17, CX18, MX Series, 580, JX Series, Tractors & Excavators Mitsubishi L3E, Perkins, Cummins 6BT 1996, 1999, 2001, 2004, 2005, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
CATERPILLAR 300.9D, 301.4C, 301.6C, 301.7CR, 301.8C, 302.2D, 302.4D, 302.7D, CB14, PS Series Compactors Mitsubishi L3E, Yanmar 3TNV76, C1.1 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
NEW HOLLAND LM Series, TD Series, TN Series, E16, E18, TS/TL Series Tractors Iveco / L3E 1992, 1993, 1994, 1996, 1997, 1998, 1999, 2000, 2001, 2003, 2004, 2005, 2006, 2008, 2009, 2010, 2011, 2012, 2013, 2016
MASSEY FERGUSON 2615, MF-3000/4000/6000 Series Tractors Perkins / SJ327E 1991, 1994, 1995, 1996, 1998, 1999, 2001, 2002, 2003, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
KUBOTA BX Series, G Series, ZD Series, RTV Series, KX Excavators D722, D782, D902, D1005, D1105 2000, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
IVECO / FIATAGRI Daily, EuroCargo, Ducato, Fiatagri Tractors 8140, 8060, 8035, 8045 1982, 1983, 1984, 1985, 1987, 1988, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
DEUTZ-FAHR Agroplus, Agrostar, DX Series, D-Series Tractors F3L912, F4L912, BF6L913, 1000.4 1968, 1978, 1980, 1982, 1986, 1988, 1989, 1990, 1991, 1993, 1996, 2007, 2008, 2009, 2010
MAN G90, M90, Commercial Trucks/Buses D0824, D0826, D0226MF 1979, 1981, 1983, 1986, 1988, 1990, 1992, 1993, 1995, 2001, 2008
VOLKSWAGEN / AUDI Transporter, LT Series, Rabbit, Jetta, Dasher, Audi 4000/5000 1.5L / 1.6L / 2.4L Diesel 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1988, 1990, 1994, 1999, 2005
FORD L-Series (L/LN/LT 9000), Cargo Cummins L10, 4BT3.9 1970, 1986, 1988, 1991, 1992, 1996, 1997, 1998, 1999
INTERNATIONAL 9000 Series, Paystar, Transtar, S-Series Cummins L10, M11, N14, NTC 1989, 1990, 1992, 1993, 1995, 2008
SCANIA & OTHERS Scania P/R/T Series (DS9, DS11, DS14), Volvo Penta, Wacker Neuson, Steyr Various Heavy Duty / Industrial 1974, 1978, 1980, and Legacy Fitments
