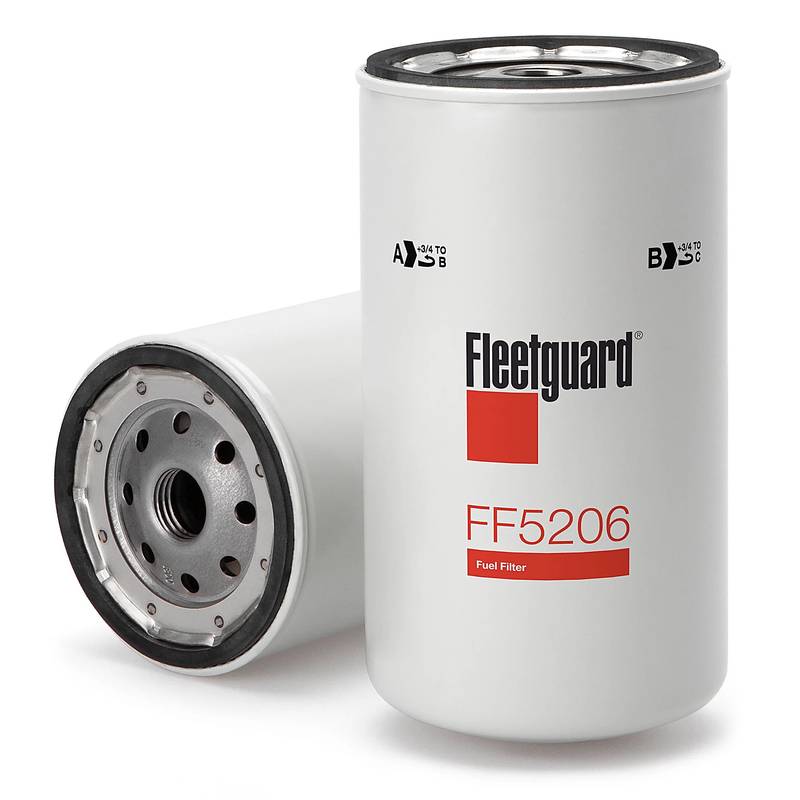

FF5206 FLEETGUARD FUEL FILTER
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Technical Specifications
| Part Type | Fuel Filter, Spin-On |
|---|---|
| Part Number | Fleetguard FF5206 |
| Thread Size | 13/16-12 UNS-2B |
| Length | 6.91 inch (175.57 mm) |
| Largest OD | 3.69 inch (93.62 mm) |
| Gasket OD | 3.49 inch (88.57 mm) |
| Gasket ID | 3.11 inch (79.12 mm) |
| Rated Flow | 1.66 gpm (6.30 L/min) |
| Efficiency Test Std | 17.30 micron (c) @ 99% (SAE J905 / J1858) |
| Media Type | Cellulose |
| Standpipe | No |
| Related Parts | Replaces FF206. Upgrade option: FF5333. |
Cross References
| Brand | Part Number |
|---|---|
| Detroit Diesel (OEM) | 23518482, 25014342, 23518530, 23530707, 3734175, 23533726 |
| General Motors (GMC) | 25010794, 6438840, 6438838, 9059910, 5148171, 20510778, 25010778 |
| Donaldson | P556916 |
| Baldwin | BF5810 |
| Wix / NAPA Gold | 33120 / 3120 |
| Luber-finer | LFP816FN |
| Fram | P1147 |
| ACDelco | TP916D |
| Caterpillar | 2266562, 3I0751, 9Y4418, 8T3911, 3I1218 |
| John Deere / Hitachi | RE501113, RE26814B, AT41420 / RE501113 |
| Freightliner | ABPN106FF5206 |
| Mack / Kenworth / Peterbilt | 5839FF5206 / KW206 / PB206 |
| Ingersoll-Rand | 90304064, 59507376, 35308063, 56928757, 91786137, 59512483, 35290600 |
Maintenance Kits Included In
| Kit Number | Contents Included |
|---|---|
| MK1333 | FF5206 (Fuel), FF5207 (Fuel), LF509N (Lube) |
| MK1549 | FF5206 (Fuel), FF5207 (Fuel), LF670 (Lube) |
Applications / Vehicle Fitment
| Make | Models | Engine Specs | Model Years |
|---|---|---|---|
| FREIGHTLINER | Columbia (CL112 / CL120) | Detroit Series 60 / Series 60 12.7L / Series 60 14L / MBE4000 / C12 / C13 / C15 / C16 / DD13 / DD15 / ISM11 | 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2020 |
| Century Class (CST112 / CST120) | Detroit Series 60 / Series 50 / MBE4000 / C12 / C13 / C15 / C16 / ISX / ISM11 | 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 | |
| Coronado (CC122 / CC132) | Detroit Series 60 / Series 60 12.7L | 2010, 2011, 2012, 2013 | |
| Argosy / Classic / FLD / FLC / FLT / FLB / FLA / FLL | Detroit Series 60 / Series 50 / 8V-71 / 8V-92 / 6V-92 / C12 / C15 / NTC / N14 | 1997, 1999, 2000, 2005, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 | |
| INTERNATIONAL | 9200 / 9200i / 9400 / 9400i / 9900i / 9900ix / ProStar | Detroit Series 60 / Series 60 12.7L / ISX / ISM11 / NT855 / N14 / M11 | 1990, 1993, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
| 3000 Series / 4700 / 4900 / 9600 Series / Paystar / Transtar | Detroit Series 50 / Series 60 / 6V-92 / 8V-71 / 8V-92 / M11 | 1993, 1995, 1996, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2018, 2019, 2020, 2021 | |
| PETERBILT | 379 / 379X / 385 / 386 / 387 / 388 / 389 | Detroit Series 60 / ISX / ISX15 / C11 / C13 / C15 / C16 | 1994, 1998, 1999, 2000, 2001, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2014 |
| 357 / 362 / 372 / 375 / 377 / 378 | Detroit Series 60 / ISX / C11 / C13 / C15 / C16 / N14 / M11 / L10 | 1988, 1989, 1998, 1999, 2000, 2002, 2003, 2004, 2005, 2006, 2007 | |
| KENWORTH | T800 / T600 / T660 / T2000 / W900 | Detroit Series 60 / Series 50 / ISX / ISX15 / N14 / M11 / L10 / 8V-92 | 1989, 1991, 1993, 1995, 1996, 1998, 1999, 2002, 2006, 2007, 2008, 2009 |
| K100 / K100E / K104 / C500 / C508 | Detroit Series 60 / ISX / ISX15 / 12V-71 / 8V-71 / N14 | 1995, 1999, 2008, 2009 | |
| FORD | L-Series (L9000, LN9000, LNT9000, LS9000, LT9000, LTS9000, LTL9000) | Cummins L10 / Detroit Series 60 / 6-71 / 8V-71 / 8V-92 | 1986, 1988, 1991, 1992, 1994, 1997 |
| VOLVO | VNL / VNM / VN Series | Detroit Series 60 / ISX / ISX15 / VED12 | 2004, 2005, 2006, 2007, 2008, 2009, 2010 |
| GENERAL MOTORS | Astro / Brigadier / General / C7000 TopKick | Detroit 6-71 / 8V-71 / 8V-92 / 6V-92 / 6V-53 / Cummins NTC / L10 | - |
| BUSES & COACHES | MCI (J4500, E4500, 102DL3) / Blue Bird / New Flyer / Prevost | Detroit Series 60 / Series 50 | 1997, 2000, 2007, 2008, 2009, 2014 |
| OFF-HIGHWAY | Terex / Hitachi / Komatsu / Ingersoll-Rand / Grove / Aveling Barford / Raygo / Letourneau / Clark | Detroit 4-53, 4-71, 6-71, 8V-71, 8V-92, 12V-71, Series 60 | 2009, 2011, and Legacy |
