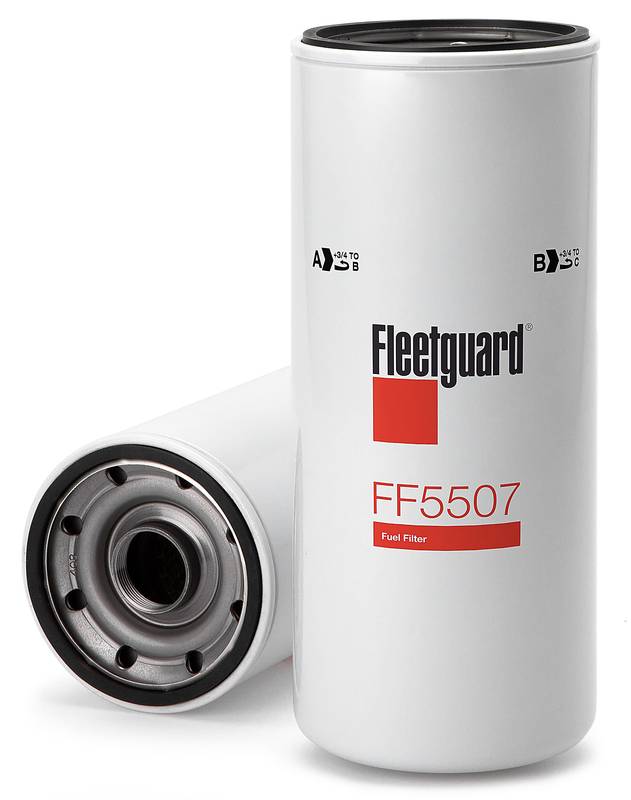

FF5507 FLEETGUARD FUEL FILTER KW

Low stock
$32.49
$32.49
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Secondary Fuel Filter, Spin-On
Part Number Fleetguard FF5507
Thread Size M32 X 1.5-6H INT
Length 10.39 inch (263.91 mm)
Largest OD 4.24 inch (107.67 mm)
Gasket OD 3.94 inch (99.95 mm)
Gasket ID 3.56 inch (90.55 mm)
Efficiency 98% @ 5 Microns (SAE J1858)
Media Type Cellulose / Advanced Media
Standpipe No
Notes Flow Direction: Outside to In. Suitable for Volvo applications with EGR engine.

Cross References

Brand Part Number
Volvo 20430751, 20976003, 85114058, 20405160, 20924422, 21879886, 20815011, 20510654, 20430752
Mack 20539582, 20972295, 20976005, 3076P8050
Donaldson P550529
Baldwin BF7814
Wix / NAPA Gold 33721 / 3721
Luber-finer / Fram LFF8059 / P9626
Renault 7420972291, 5001868493, 7485116634, 7420976001, 7420541381
DAF / TRP DAF / MAN 1533834, 1517416 / 1534378 / 51125030053

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
VOLVO VNL Series (300, 400, 430, 630, 670, 730, 740, 760, 770, 780, 860), VNM, VHD, VAH, VNX, VT D11, D13, D16, VED11, VED12, VED13, VED16 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Coaches / Buses: 9700, 9900, 9500, 8500, 8700, 8900, B7R, B9, B12, B13R D9B, D11, D12, D13, DH12, DH13 2000, 2001, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2017
MACK Anthem, Granite (GU7, GU8, CTP), Pinnacle (CHU, CXU), TerraPro (MRU, LEU), Titan (TD700), MD6, MD7 MP7, MP8, MP10, MP8HE 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
FREIGHTLINER Cascadia (113, 125), Columbia (120), M2, Coronado, Century Class Cummins ISX12G, Cat C15, Detroit Series 60 2008, 2009, 2010, 2013, 2014, 2015, 2016, 2020
WESTERN STAR 4700, 4800, 4900 (EX, FA, SA), 6900XD Cummins ISC8.3, ISX, Cat C15 2000, 2004, 2011, 2012, 2013, 2018
RENAULT / SCANIA Renault Kerax, Magnum AE, Premium / Scania R, P, G, T Series, K 420 IB DXI 11, DXi 12, DXi 13 / Scania DC9, DC11, DC12, DC16, DT12 1997, 1998, 1999, 2002, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
OFF-HIGHWAY Construction: Liebherr PR/R Series, Volvo Excavators/Loaders, Terex Articulated Trucks Ag: Claas Lexion/Xerion/Tucano, Krone Big X, Fendt Katana Volvo Penta TAD Series, Cat C9, C10, C12, C13 -
