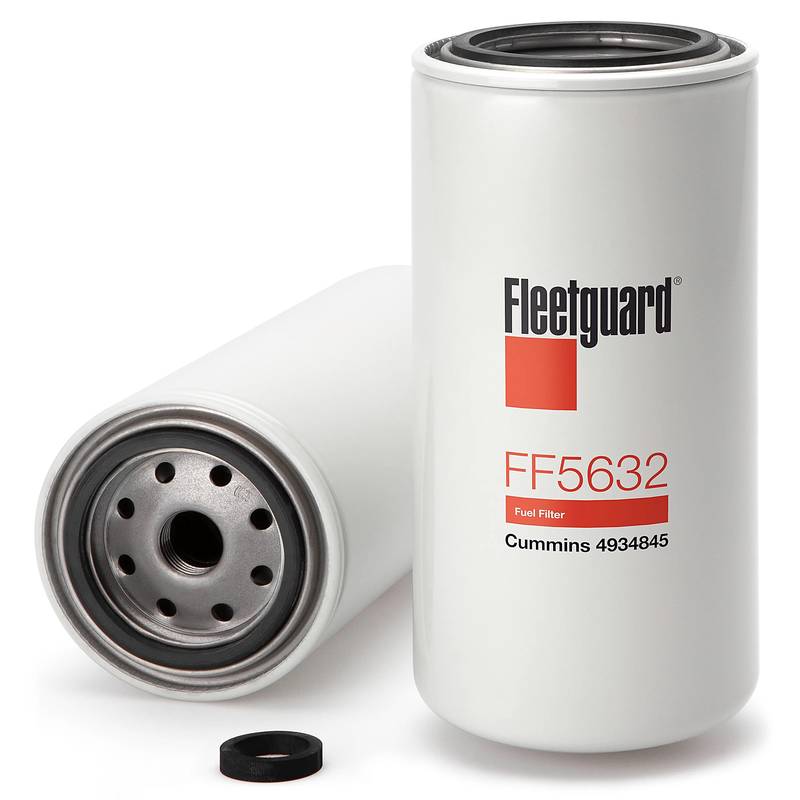

FF5632 FLEETGUARD FUEL FILTER KW

Low stock
$35.09
$35.09
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Secondary Fuel Filter, Spin-On
Part Number Fleetguard FF5632
Thread Size M20 X 1.5-6H INT
Length 6.91 inch (175.51 mm)
Largest OD 3.68 inch (93.47 mm)
Gasket OD 2.83 inch (71.88 mm)
Gasket ID 2.46 inch (62.48 mm)
Efficiency 98.7% @ 4 Microns (SAE J1985)
Media Type NanoNet® Proprietary Media
Standpipe No
Notes Specifically designed for Cummins ISB/QSB 6.7L and ISC/QSC 8.3L engines to protect High-Pressure Common Rail (HPCR) systems.

Cross References

Brand Part Number
Cummins 4947861, 5289131, 5303743
Donaldson P550881
Baldwin BF9885
Wix 33951
NAPA Gold 3951
Luber-finer LFF6731

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
PETERBILT 337, 348, 567, 579, 320, 325, 330, 365, 382 Paccar PX-7, PX-9, Cummins ISL9, ISC8.3 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
KENWORTH T270, T370, T440, T470, T660, T680, T880, W900 Paccar PX-7, PX-9, Cummins ISL9 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
FREIGHTLINER M2 106, M2 112, 108SD, 114SD, Cascadia, XC Chassis Cummins ISB 6.7, ISL9, ISC8.3 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
INTERNATIONAL Durastar, WorkStar, MV, HV Cummins ISB 6.7, ISL9 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
BLUE BIRD / IC BUS All American (FE/RE), Vision / CE Series Cummins ISB 6.7, ISL9 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2019
OFF-HIGHWAY Loaders: Hyundai HL Series, Kawasaki Z7 Series Pavers: Vogele Super Series Other: Dynapac, Bergmann, Capacity TJ5000 Cummins QSB 4.5, QSB 6.7, QSL9 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
