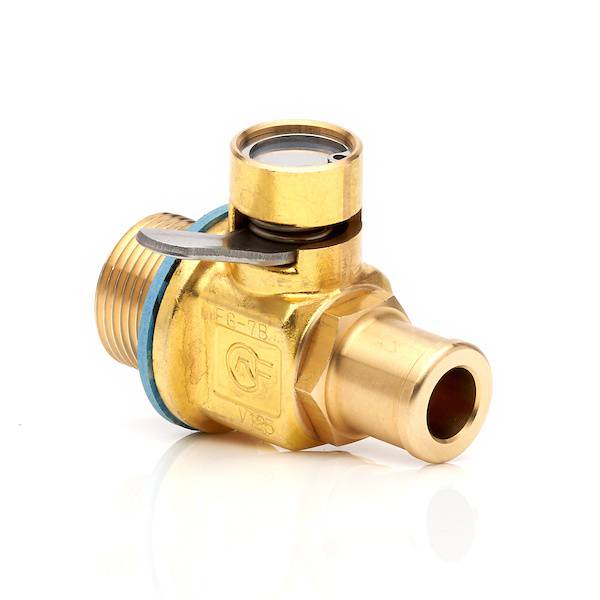

Oil Drain Plug Valve Nipple Oil Drain Valve with M18-1.5 - FG2NS
Out of stock
Regular price
$51.99
Sale price
$51.99
Regular price
Unit price
/
per
Couldn't load pickup availability
Sorry, it's out of stock.
Email us, we can let you know when more stock is available.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Payment methods
Sold out
Description
Oil Drain Plug Valve Nipple Oil Drain Valve with M18-1.5.
Specifications
| Feature | Details / Value |
|---|---|
| Thread Size | M18-1.5 (18mm Diameter / 1.5mm Pitch) |
| Nipple Dimensions | Diameter: 5/8" (16mm) | Length: 5/8" (15mm) |
| Body Material | Forged Brass |
| Internal Materials | Stainless Steel Handle & Spring | Chrome Plated Brass Ball |
| Pressure & Temperature | Pressure Rating: 145 PSI | Temperature Range: -40° to 365° F (-40° to 185° C) |
| Recommended Torque | 354 in-lbs / 30 ft-lbs (40 Nm) |
| Sealing Type | Blue Fiber Gasket (18mm Fiber Gasket) |
| Factory Pressure Tests | Hydraulic Test Pressure: 0.6 MPa | Leakage Test Pressure: 0.10 MPa |
| Weight | 0.31 lbs (140 g) |
Part Numbers & Cross References
| Brand / Category | Part Number / Model |
|---|---|
| Fumoto (Main Product) | FG2NS |
| Replacement Gasket Washer | G-18 (M18 Gasket - Not compatible with SX valves) |
| Lever Lock | T-Lock (For FG & T series valves) |
| Large Lever Clip | LC-20 (For FG, T, and SX industrial series valves) |
| Clear Vinyl Hose | M-Hose (5/8" Inside Diameter Hose) |
| Cover Cap | L-Cap (For 3/4" nipples) / M-Cap (For 5/8" nipples) |
Important Notes
Applications & Installation Guide
| Category | Instructions & Guidelines |
|---|---|
| Recommended Use | • Designed primarily for industrial engines, medium and heavy-duty commercial vehicles, generators, or construction machinery. • Warning: Due to the nipple extension, it is only recommended for vehicles or equipment with high ground clearance. NOT recommended for low clearance passenger vehicles. • Fumoto is a trusted brand used globally in fleets and equipment by manufacturers such as Caterpillar, Cummins, Daimler, Freightliner, Kenworth, Paccar, Peterbilt, Volvo, among others. |
| Standard Installation | 1. Preparation: Place the blue fiber gasket flat onto the valve thread base. Remove the original drain plug from the oil pan, drain the oil completely, and thoroughly clean the port surface area before installation. 2. Mounting: Thread the valve into the drain port smoothly by hand to avoid damaging the threads. Tighten using a crescent wrench directly on the valve body 1/8 to 1/4 turn past hand tight (or applying the 30 ft-lbs torque). Do not apply force or use tools on the head of the nipple outlet. 3. Closing & Filling: Close the valve by firmly turning the control lever clockwise until it stops perpendicular to the oil outlet. The lever will click and lock into its safety recess slot. Install the lever clip and refill with new oil. |
| Operation | • To Open: Remove the safety clip (if installed), lift the control lever firmly upward to unlock it, and turn it counter-clockwise. • To Close: Turn the lever firmly clockwise until it stops and snaps on its own (clicking) into the safety retention recess slot (remaining perpendicular to the outlet). It should not be possible to rotate the lever without lifting it upward first. Reinstall the safety clip. |
