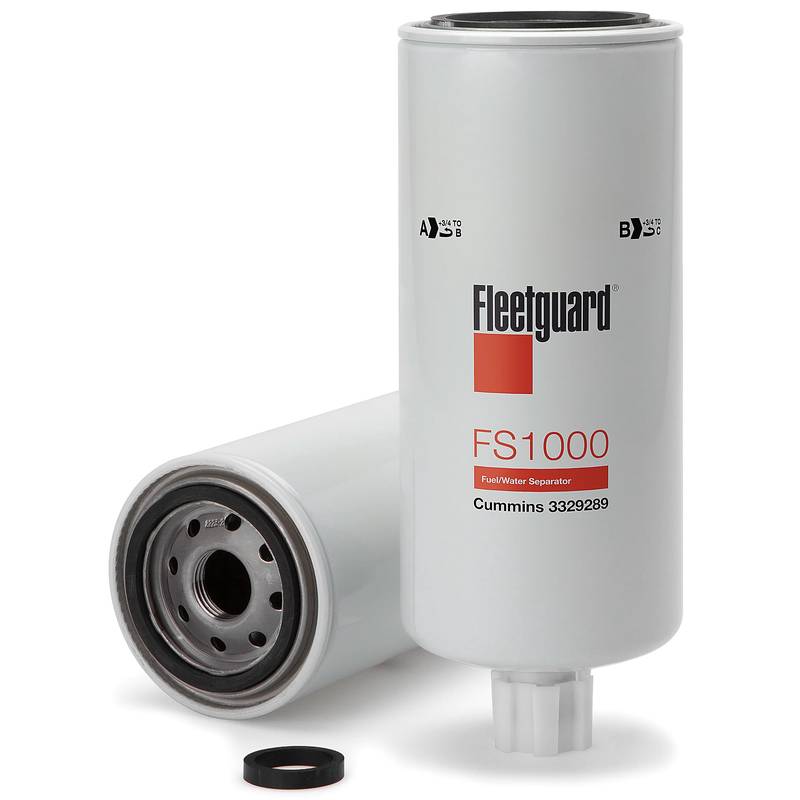

FS1000 FLEETGUARD FUEL FILTER KW

Low stock
$28.59
$28.59
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Primary Fuel/Water Separator, Spin-On
Part Number Fleetguard FS1000
Thread Size 1-14 UNS-2B
Length 9.81 inch (249.07 mm)
Largest OD 3.67 inch (93.22 mm)
Gasket OD 2.83 inch (71.88 mm)
Gasket ID 2.46 inch (62.48 mm)
Efficiency 98.7% @ 10 Microns (SAE J1985)
Water Separation 95% Emulsified Water / 95% Free Water
Media Type StrataPore™ Multi-Layered Media
Standpipe Yes
Notes Required on all Cummins Select and Quantum 19L Engines. Industry standard for superior water removal.

Cross References

Brand Part Number
Cummins 3329289, 3308638, 3831132, 3315843
Donaldson P551000
Baldwin BF1212
Wix / NAPA Gold 33406 / 3406
Luber-finer / Fram LFF1000 / PS8687
Caterpillar 256-8753, 9Y4431, 3I1367
Volvo / Mack 12977622 / 5839FS1000

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
FREIGHTLINER Century Class, Columbia, Cascadia, FLD, Argosy, Coronado, M2, Classic, Condor N14, M11, ISM11, ISL9, C15, C16, DD13, DD15, DD16 1989, 1995, 1996, 1997, 2000, 2002, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
INTERNATIONAL 9000 Series (9100, 9200, 9400, 9900), PayStar, WorkStar, TranStar, ProStar, LoneStar N14, M11, ISM11, 3406, C11, C13, C15 1992, 1993, 1995, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
KENWORTH T800, W900, T600, T660, T2000, C500 N14, M11, ISM11, ISX12, X12, 3406E, C15 1987, 1989, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
PETERBILT 379, 386, 387, 388, 389, 367, 365, 357, 320 N14, M11, ISM11, ISX12, ISX15, 3406E, C15, MX-13 1985, 1993, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2016
VOLVO / MACK Volvo: VNL, VNM, VHD, ACL, WG Mack: Granite, Vision, CH, CT, RD D12, D13, D16, N14, M11, 3406 1992, 1998, 2001, 2004, 2020
CONSTRUCTION / AG Komatsu: PC600, WA500, WA600 Terex: TR35, TR45, TR60, FD Mixers Hyundai/Hitachi: R480LC, R520LC, EX1100 Ag: Case IH, New Holland, Versatile QSK19, QSM11, N14, M11 1990, 1996, 1997, 1999, 2000, 2001, 2002, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
