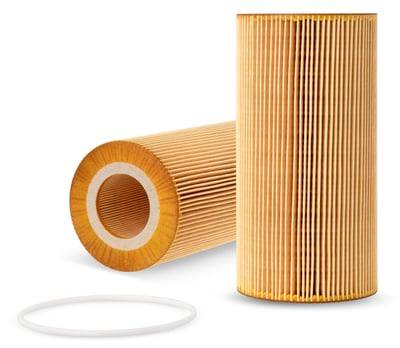

LF16233 FLEETGUARD FUEL FILTER

Low stock
$93.89
$93.89
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Full-Flow Lube Filter, Cartridge
Part Number Fleetguard LF16233
Media Type NanoNet® (High-Performance Synthetic) / Cellulose
Length / Height 8.66 inch (220.00 mm)
Largest OD 4.44 inch (112.70 mm)
Largest End ID 2.20 inch (55.80 mm)
Primary Efficiency 98.7% @ 39 Microns (ISO 4548-12)
Rated Flow 35.67 gpm (135.00 L/min)
Pressure Valve No
Notes Environmentally friendly design. Specifically engineered for Paccar MX-11 and MX-13 engine requirements.

Cross References

Brand Part Number
Paccar 1948921, 1948921PE, 1948921G, 1643070PE, 2151728
DAF 1948921, 1643070, 1643070G, 1629393, 1537110
Donaldson P551079
Baldwin P40011
Wix / NAPA Gold WL10111 / 100111
Luber-finer / Fram LP6043 / CH11464
Renault / Bosch 7424993649 / F026407045

Maintenance Kits

Kit Number Contents Included
MK14628 CS41045 (Lube), LF16233 (Lube), FF5695 (Fuel), FS19769 (Fuel)
MK14625 FS19765 (Fuel), LF16233 (Lube)

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
PETERBILT 567, 367, 365, 520, 579, 389, 587, 384, 386, 388, 387 Paccar MX-11, MX-13 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
KENWORTH W900, W990, T800, C500, T680, T680 Next Gen, T880, T470, T660, T700, T409, T2000 Paccar MX-11, MX-13 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2025
VAN HOOL Astromega TDX27/TDX25, Altano TDX21/TDX20, EX17H, EX16H, Acron TX16/TX17/TX18, Astronef TX15/TX16/TX17, Astron TX16/TX17, Altano TX17/TX18/TX19, CL915/916, T915/916, TD925 Paccar MX-13, MX 375, MX 340 2005, 2008, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
DAF XF480, XF530, XF430, CF480, CF430, CF530, XF105, CF85, XF106 (410, 460, 510), CF86 (410, 460, 510) Paccar MX-13, MX 340, MX375S, MX300S, MX410S 2005, 2006, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
OFF-HIGHWAY Irizar: i8, i6, i4, i3, PB Series Tatra: Phoenix, T Series VDL: Futura, Synergy, Jonckheere, Magiq Other: Vervaet Hydro Trike, Ginaf Trucks Paccar MX-13, MX13 Euro 6 1981, 1983, 1984, 1985, 1988, 1990, 1994, 1996, 2002, 2006, 2007, 2008, 2009, 2010, 2011, 2013, 2014, 2015, 2016, 2017
