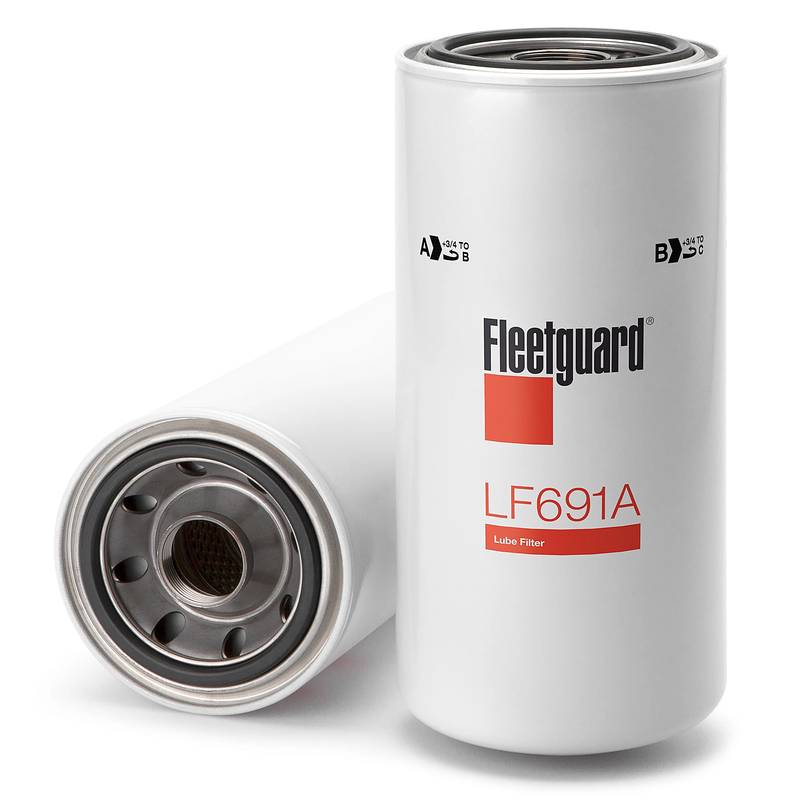

LF691A FLEETGUARD OIL FILTER KW

Low stock
$36.39
$36.39
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Lube Filter, Spin-On (Bypass)
Part Number Fleetguard LF691A
Media Type Stacked Disc (High-Efficiency Bypass)
Thread Size 1 1/8-16 UN 2B (M36 Threads)
Length 12.19 inch (309.65 mm)
Largest OD 5.38 inch (136.61 mm)
Gasket OD 4.29 inch (108.97 mm)
Gasket ID 3.72 inch (94.49 mm)
Efficiency 99.75% @ 25 Microns (Primary Particle)
Rated Flow 28.01 gpm (106.00 L/min)
Notes Replaces LF3954. Dedicated bypass filter used to remove fine soot and carbon. Upgrade to LF3566 or LF9691A.

Cross References

Brand Part Number
Caterpillar 1R1808, 1R0716, 7W5497, 4W6000, 2P4005, 1W2660, 3244382
Cummins 3310169, 3889311, 154070
Navistar / Case IH 3014491C91 / 1663805C1
Donaldson / Baldwin P550691 / B75
Wix / NAPA Gold 51749 / 1749
Atlas Copco / Sennebogen 3222326230 / 85693

Applications / Vehicle Fitment

Make Models Engine Specs Model Years
FREIGHTLINER Century Class S/T, Columbia CL112/120, Coronado, Cascadia, M2 106, Argosy Cat C15, C16, C13, C12, C11, C9, 3406 2000, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
INTERNATIONAL / NAVISTAR 9900I, 9900IX, PayStar 5900I/5600I, ProStar, LoneStar, WorkStar 7600/7700, TranStar, 9200I, 9400I Cat C15, C16, C13, C12, 3406, MaxxForce 11, CT13 1998, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
WESTERN STAR / STERLING Western Star 4900SA/FA/EX, 6900XD / Sterling L-Line, A-Line Cat C15, C16, C13, C12, 3406, 3306 1985, 1988, 1999, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
PETERBILT / KENWORTH Pete: 389, 388, 387, 386, 384, 379, 367, 365, 357, 320 KW: T800, W900, T660, T2000, C500, K108, K104 Cat C15, C16, C13, C12, C11, C9, 3406, 3408 1984, 1985, 1988, 1989, 1990, 1991, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2018, 2019, 2020, 2021
CATERPILLAR (OFF-HWY) Excavators (330, 336, 345, 349, 365, 374, 375, 385, 390), Dozers (D6-D11), Dump Trucks (770-797, 725-745), Loaders (966-994), Motor Graders (12, 14, 16, 120, 140, 160) C7, C9, C11, C12, C13, C15, C18, C27, C32, 3406, 3408, 3412, 3508, 3512, 3516 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2017, 2018, 2019, 2020, 2021, 2023
INDUSTRIAL / OTHER Ag: Claas Lexion, Challenger MT Series, AG Chem Terra-Gator Buses: MCI J4500, Blue Bird Express/Vision, Van Hool Alizee Other: Atlas Copco, Terex Advance FD/FDB, Gomselmash, Komatsu HD785 Cat C7, C9, C13, C15, C18, Cummins QSB, QSK, QST, QSX 1984, 1985, 1986, 1993, 1996, 2001, 2002, 2003, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
