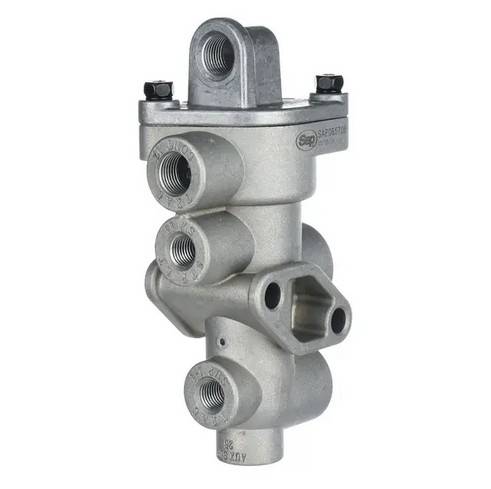

SAP065706 TRACTOR PROTECTION VALVE (TP-3DC STYLE)

Low stock
$75.34
$75.34
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Tractor Protection Valve (TP-3DC Style)
Part Number SAP065706
Brand / Line SAP
Description Tractor Protection Valve – TP-3DC style (protects tractor air supply from trailer brake system failure or breakaway)
Model TP-3DC
Port Sizes Supply: 3/8" NPT • Control: 3/8" NPT • Delivery: 3/8" NPT • Tractor Control: 3/8" NPT
Application Heavy-duty tractor air brake systems – isolates tractor supply air from trailer in case of trailer breakaway or severe air loss

Cross References

Brand Part Number
SAP SAP065706
Bendix 065706, BW065706, TP-3DC
Automann 170.065706
World American WA65706
Application Tractor Protection Valve – TP-3DC Style

Vehicle Fitment

Make Model Model Years Notes
FREIGHTLINER Cascadia 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
Century Class 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Air brake equipped models
Columbia 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Air brake equipped models
Coronado 2001, 2002, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2016 Air brake equipped models
Classic / Classic XL 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 Air brake equipped models
FLD / FLD120 / FLD132 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Air brake equipped models
KENWORTH T800 / W900 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
T600 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Air brake equipped models
T2000 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Air brake equipped models
C500 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Air brake equipped models
PETERBILT 379 / 389 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
387 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
386 / 388 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
Notes SAP065706 is the direct replacement for Bendix 065706 / TP-3DC Tractor Protection Valve. Mounts at the rear of the cab and is controlled by the trailer air supply valve on the dash. Protects tractor air supply in the event of trailer breakaway or severe air loss. Also fits Western Star, Sterling, Mack, Volvo, and all heavy-duty tractors with air brake systems.
