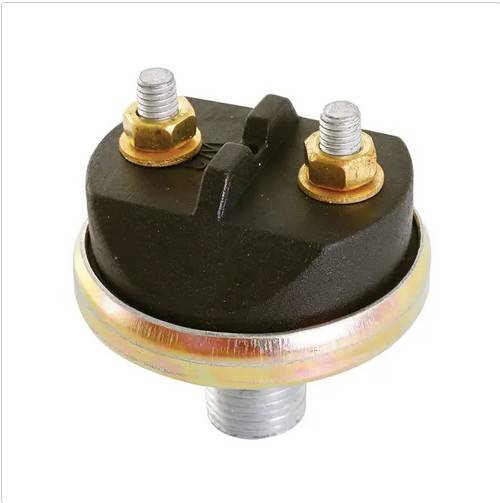

SAP13250 STOP LIGHT SWITCH (SL5 SERIES)

Low stock
$19.54
$19.54
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Stop Light Switch (Air Brake Pressure Switch)
Part Number SAP13250
Brand / Line SAP (SL5 Series)
Description Stop Light Switch – Single Pole, 2 Terminal, Normally Open, Air Brake Service Circuit
Actuation Pressure 3-5 PSI
Pipe Thread 1/4-18 NPT
Switch Type Single Pole 2 Terminal (Normally Open)
Application Heavy-duty truck air brake systems – activates brake lights on service brake application

Cross References

Brand Part Number
SAP SAP13250
Haldex / Midland BE13250
Bendix 13250 (equivalent SL-4 / SL-5 style)
Application Stop Light Switch – Air Brake Service Circuit (3-5 PSI, 1/4-18 NPT)

Vehicle Fitment

Make Model Model Years Notes
FREIGHTLINER Cascadia 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
Century Class 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Air brake equipped models
Columbia 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Air brake equipped models
Coronado 2001, 2002, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2016 Air brake equipped models
Classic / Classic XL 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 Air brake equipped models
FLD / FLD120 / FLD132 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Air brake equipped models
KENWORTH T800 / W900 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
T600 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Air brake equipped models
T2000 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Air brake equipped models
C500 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Air brake equipped models
PETERBILT 379 / 389 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
387 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
386 / 388 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Air brake equipped models
Notes SAP13250 is the SL5 stop light switch (replaces Haldex BE13250). Pneumatic pressure switch for air brake service circuits – activates brake lights at 3-5 PSI. Direct fit on all heavy-duty trucks and trailers with air brakes. Also fits Western Star, Sterling, Mack, Volvo, and buses/coaches with compatible air brake systems.
