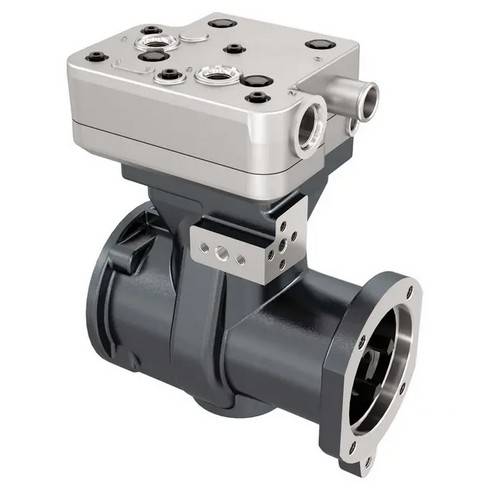

SAP9111535200 AIR COMPRESOR (SINGLE CYLINDER, SS318 STYLE FOR CUMMINS ISM ENGINES)

Low stock
$1,370.07
$1,370.07
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Technical Specifications

Part Type Single Cylinder Air Compressor (Wabco SS318 Style)
Part Number SAP9111535200
Brand / Line SAP
Description Single Cylinder Compressor – Wabco SS318 style for Cummins ISM engines
Cylinder Bore ø85.00 mm
Displacement 318 cm³
Stroke 56 mm
Drive Gear 40 Tooth
Air Inlet Port Size ø25.00 mm
Water Cooled Valve Plate Yes
Application Cummins ISM engines in heavy-duty trucks

Cross References

Brand Part Number
SAP SAP9111535200
Wabco 9111535200, 9111535200X
Cummins 3966523, 4936227
Application Single Cylinder Air Brake Compressor – Wabco SS318 for Cummins ISM

Vehicle Fitment

Make Model Model Years Notes
FREIGHTLINER Cascadia 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
Century Class 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Cummins ISM equipped models
Columbia 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Cummins ISM equipped models
Coronado 2001, 2002, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2016 Cummins ISM equipped models
Classic / Classic XL 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 Cummins ISM equipped models
FLD / FLD120 / FLD132 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Cummins ISM equipped models
KENWORTH T800 / W900 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
T600 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Cummins ISM equipped models
T2000 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Cummins ISM equipped models
C500 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Cummins ISM equipped models
PETERBILT 379 / 389 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
387 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
386 / 388 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
INTERNATIONAL / NAVISTAR ProStar / LoneStar 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
9200i / 9400i / 9900i 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Cummins ISM equipped models
4300 / 4400 / 4700 / 4900 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Cummins ISM equipped models
Notes Single cylinder air brake compressor (Wabco SS318 style) specifically for Cummins ISM engines. Replaces Wabco 9111535200 / 9111535200X and Cummins 3966523, 4936227. Designed for heavy-duty truck air brake systems. Also fits Western Star, Sterling, and other makes equipped with compatible Cummins ISM engines.
